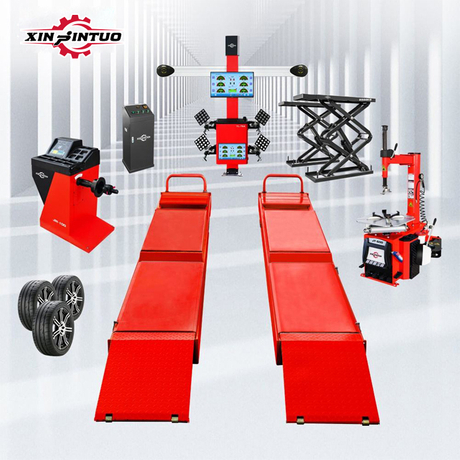

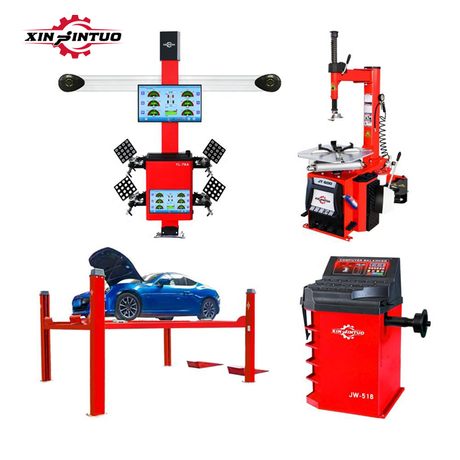

Jintuo hot sale wheel alignment four post car lift tire changer wheel balancer
Product Parameters
Wheel Alignment Machine Specification | ||
Measurement Items | Measurement Accuracy | Measurement Range |
Total Toe | ±0.01° | ±40° |
External Bevel | ±0.01° | ±45° |
Caster | ±0.02° | ±45° |
S.A.I | ±0.02° | ±45° |
Thrust Angle | ±0.01° | ±40° |
Set Back | ±0.01° | ±40° |
Max.Steering Angle | ±0.02° | ±50° |
| Wheelbase | ±2° | 2006-4572MM |
| Wheel Track | ±2° | 1219MM- 2438MM |
Packing Dimension | - | 880*790*1060MM 2920*360*360MM |
1. Suitable for four-wheel positioning. Strong horizontal adjustment ability can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection. Dual display LCD screen ensures that operators in any angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.
2. Four target plates are made of reinforced plastic shel, aging resistance, long service life; Only detector imaging, no electronic components and connection, strong anti-interference ability.
3. The software is available in multiple languages, including Chinese, English, Spanish, Russian, and Portuguese.
4. With the secondary lift lifting height 470mm, smooth lifting, free sliding, suitable for adjusting and repairing tires.
5. Rope breaking protection. All fuses on 4 posts are opened /closed at the same time, the vehicle will not fall when the wire rope is broken, safe and reliable.
6. A transverse sliding device is provided. Adjustable dial position and skateboard, designed for four-wheel positioning purposes, can be adjusted to ensure the level to achieve four wheel alignment function.
7. Unilateral lock operation is simple. Manual unlocking device, four pilars lock at the same time more safe and convenient.
8. The platform spacing can be adjusted to accommodate vehicles with different tire spacing.
Please consult the product manager for more product functions and introductions!

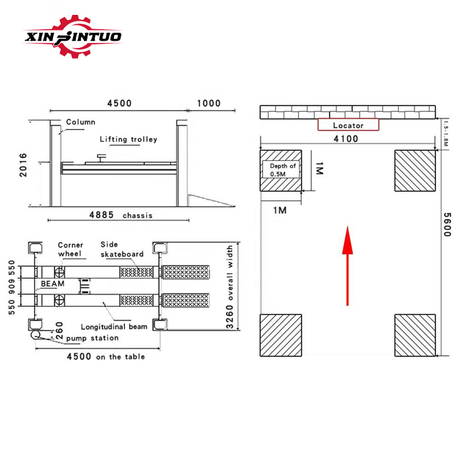

| Wheel Alignment Specification | |
| Lifting Capacity | 4000KGS |
| Length of Platform | 4200/4500MM |
| Width of Platform | 550MM |
| Lifting Height | 1600MM |
| Secondary Jack | 470MM |
| Lifting Time | 37S |
| Motor Power | 2.2KW |
| Voltage | 220/240/380/415V |
| Gross Weight | 35KGS |
| 1500KGS | |
| Packing Size | 4700*650*900MM(1PC) |
| 850*260*240MM(1PC) | |
| Tire Changer Specification | |
| Inside Clamp | 12-24'' |
| Outside Clamp | 10-22'' |
| Max. Wheel Diameter | 1050MM |
| Wheel Width | 4-13'' |
| Voltage | 110V/220V/380V |
| Gross Weight | 220KGS |
| Packing Dimension | 1220*1000*900MM |
| Wheel Balancer Specification | |
| Rim Diameter | 10-24'' |
| Max. Wheel Diameter | 950MM |
| Max. Wheel Width | 1.5-12'' |
| Gross Weight | 120KGS |
| Power Supply | 110V/220V |
| Packing | 1020*700*1120MM |
