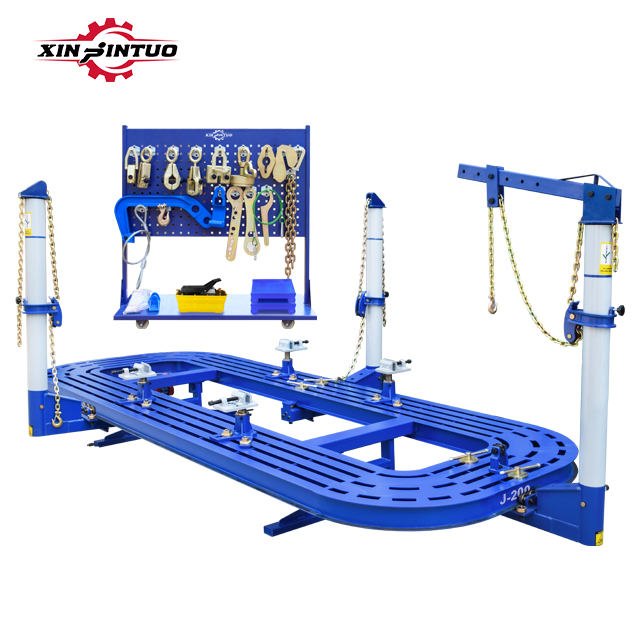

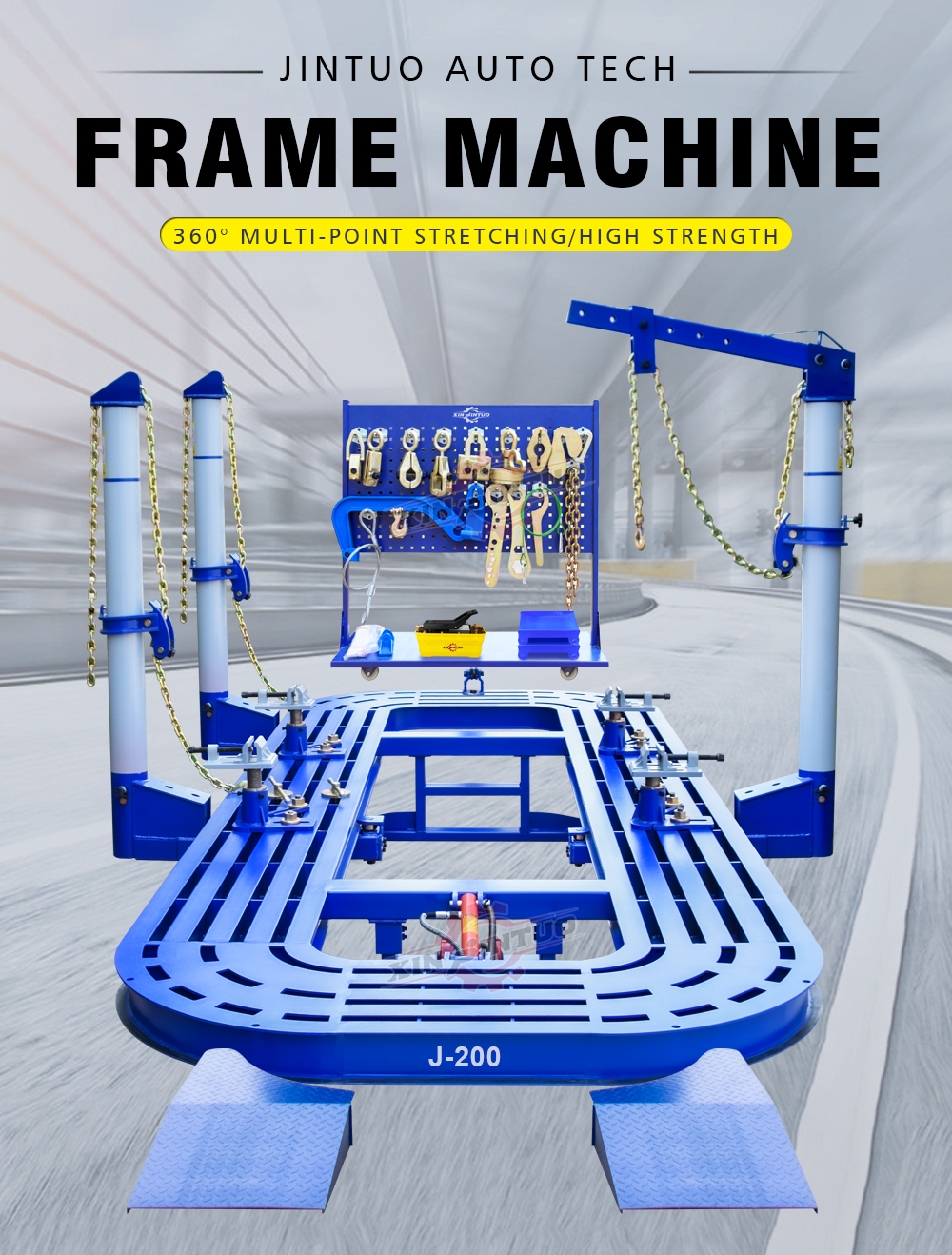

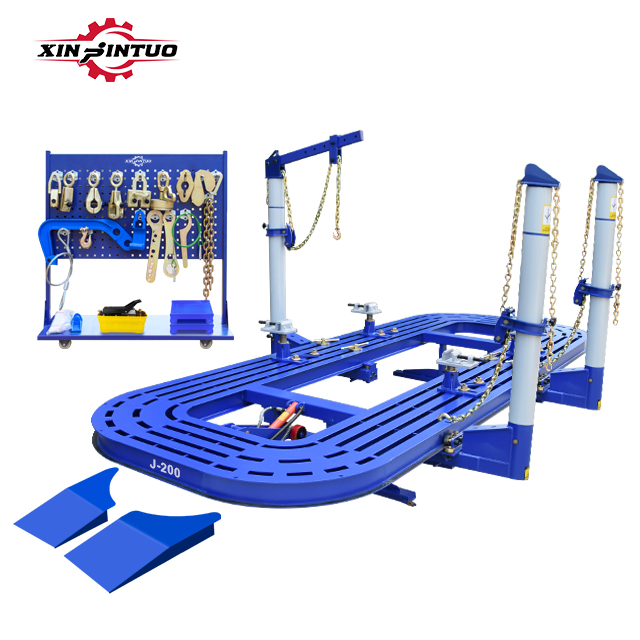

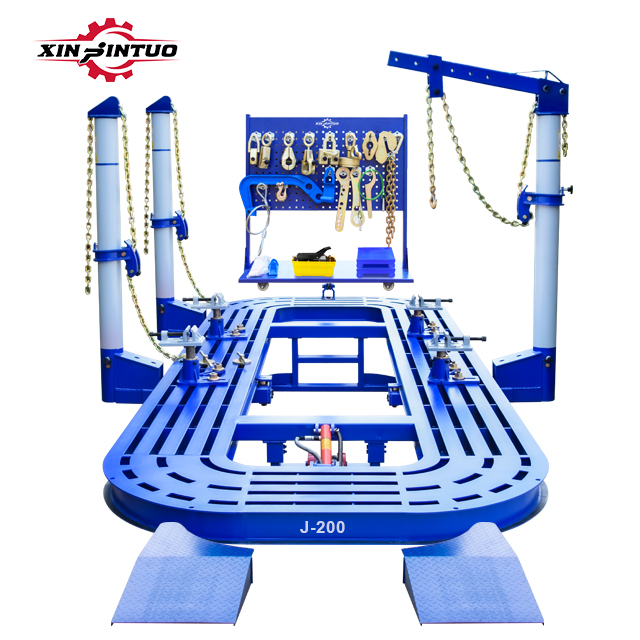

Jintuo CE Approved Chassis Straightening Car Frame Machine for Car Collision Repair

Platform Length:
Platform Width:
Lifting Capacity:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • J-200

  • Jintuo Auto Tech

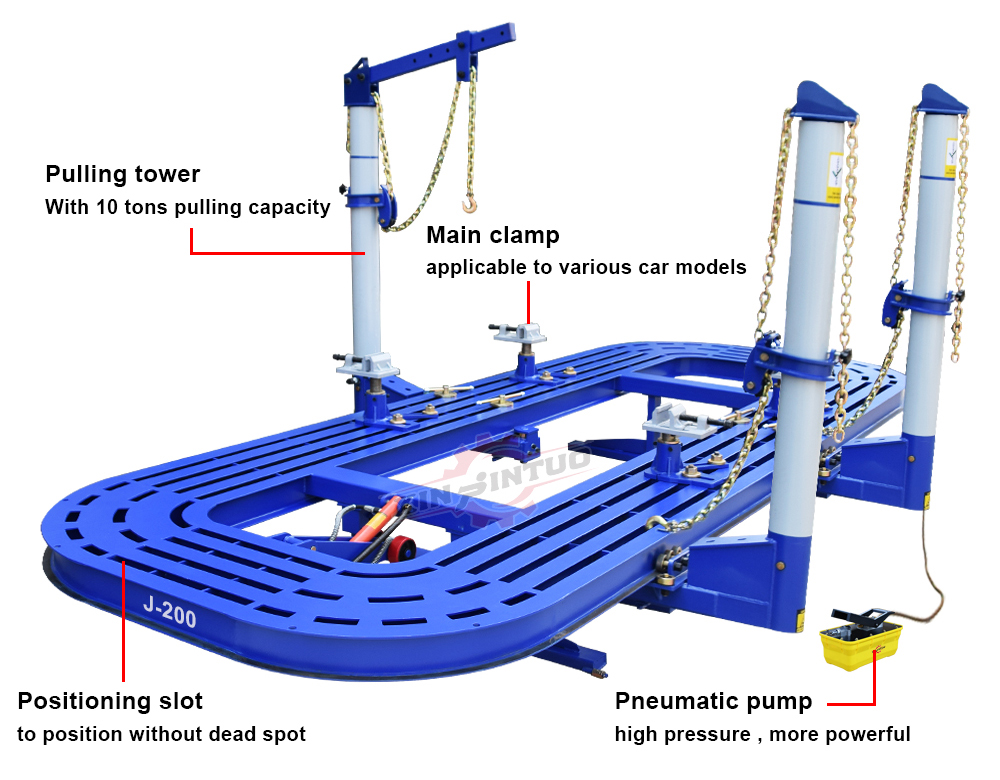

Jintuo Auto Tech I-beam car frame machinecar frame machine main advantages

Product parameters:

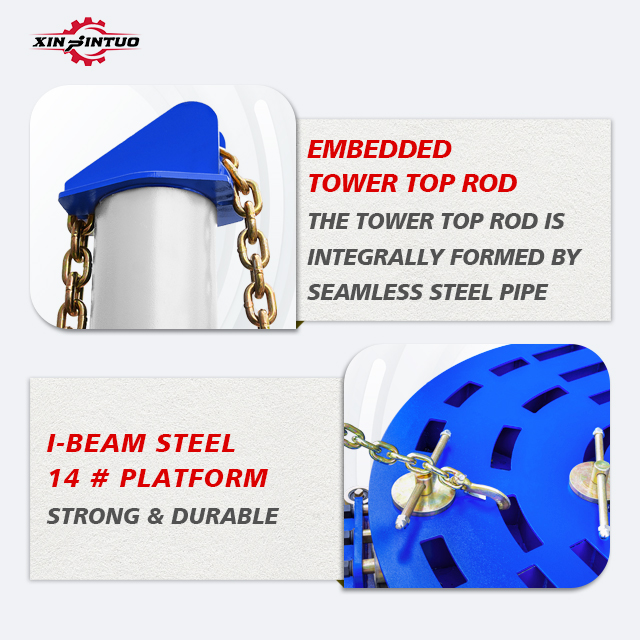

platform material I-Beam steel plate
Platform length 5600mm
Platform width 2100mm
Platform height 560mm
Air supply Required
0.8Mpa
Hydraulic power 70Mpa
Power pulling capacity 100KN
Padius of pulling 360
Maximum load 3500kg

Product Description:

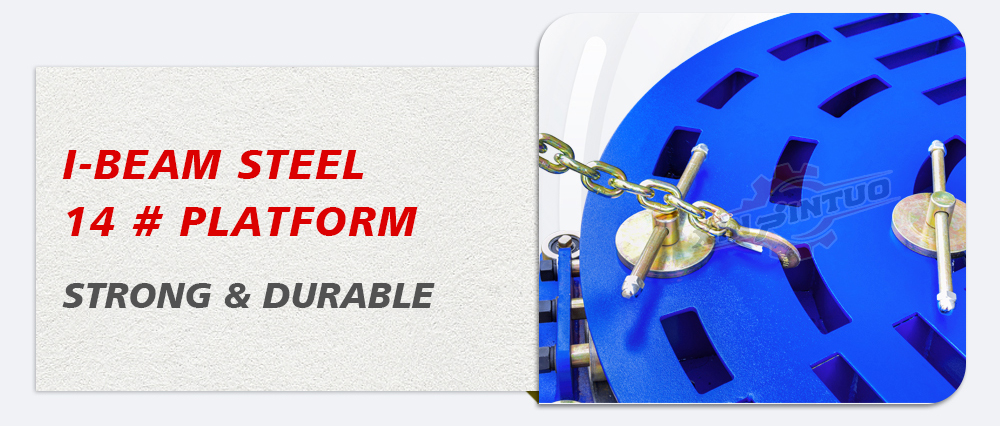

1. I-Beam steel plate tilt lifting platform,flexible leg makes the platform loading and unloading easily.

2. There are more holes on the platform,more easy to fix the clamps,no working blind.

3. The pulling towers can be rotated 360° along with the platform which is operated more convenient.

4. Unique wheel rotation design,so that the pulling towers more stable,flexible.Unique fixed way of the tower,convenient and reliable,no working blind.

5. Configuration of a variety of tools to meet any deformation correction and repair.

6. The hydraulic system with good design has powerful driving force, long life and low failure rate.

7. High-strength chains provide the forceful guarantee for 10T hydraulic thrust

8. With CE certificate

Please consult the product manager for more product functions and introductions!

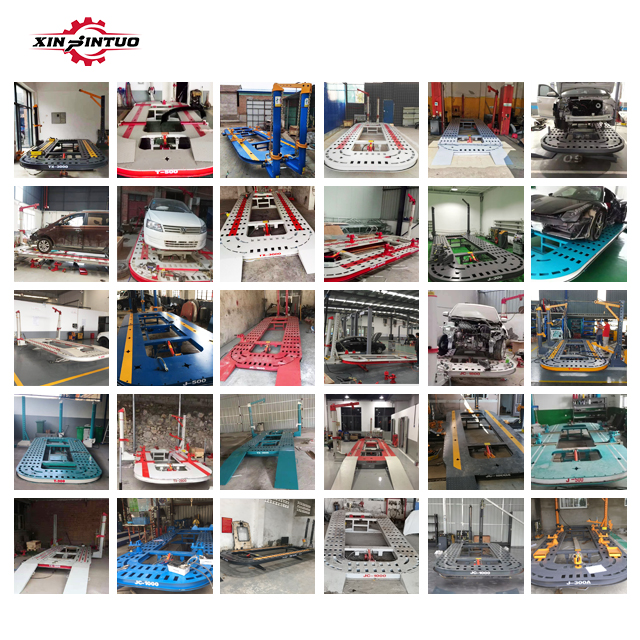

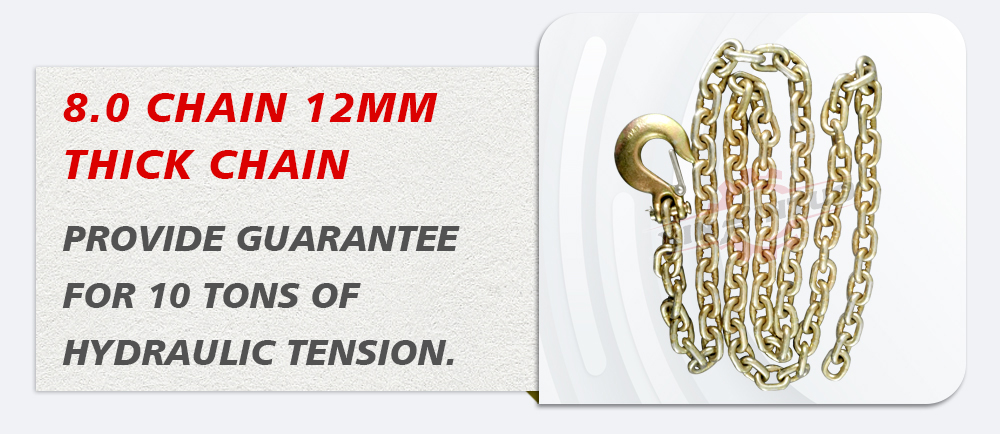

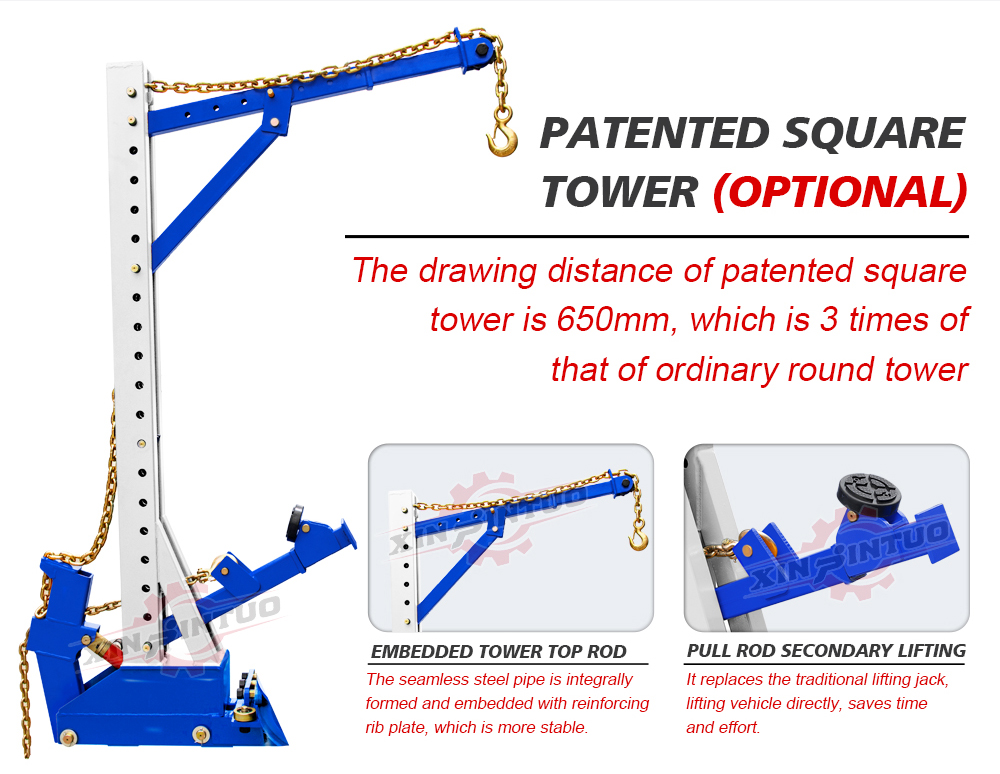

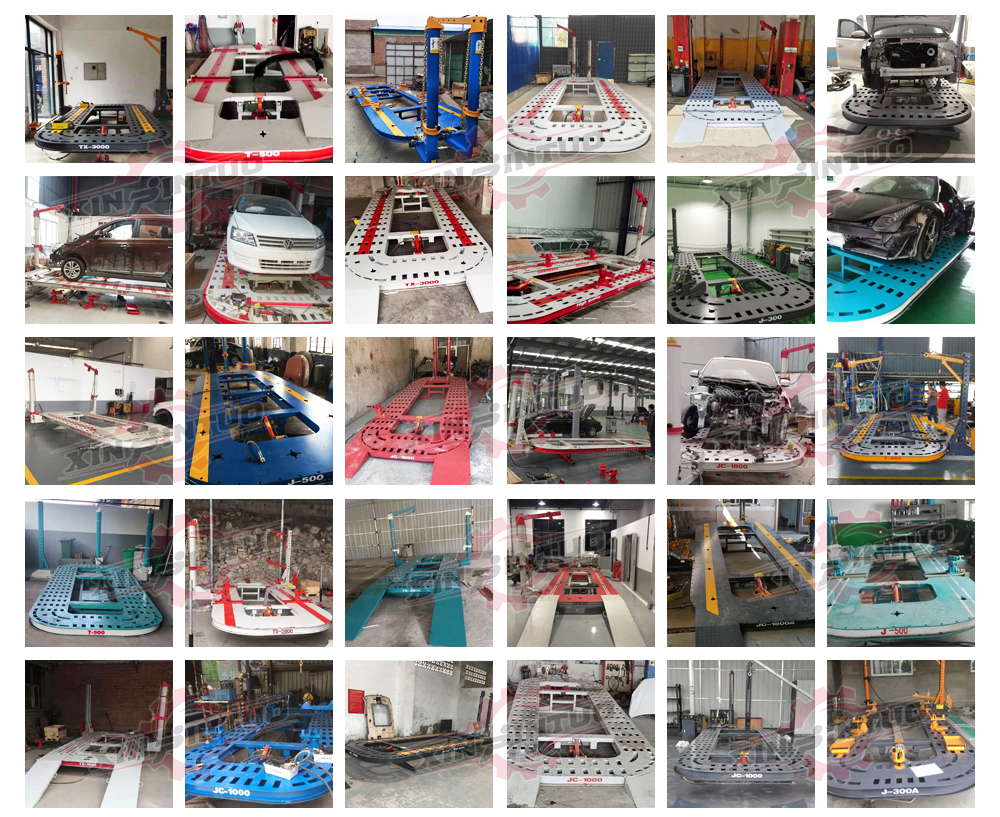

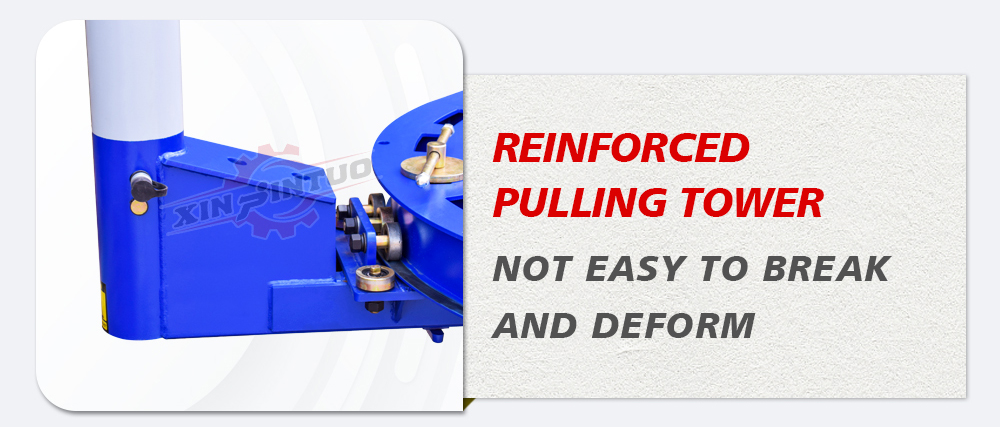

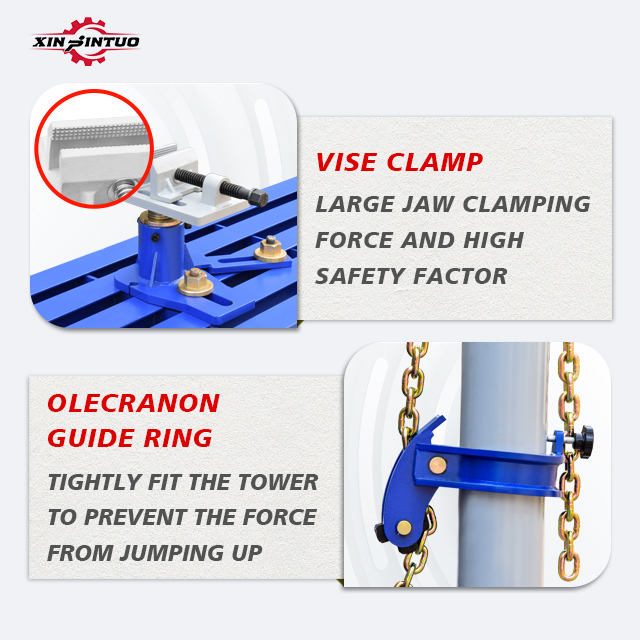

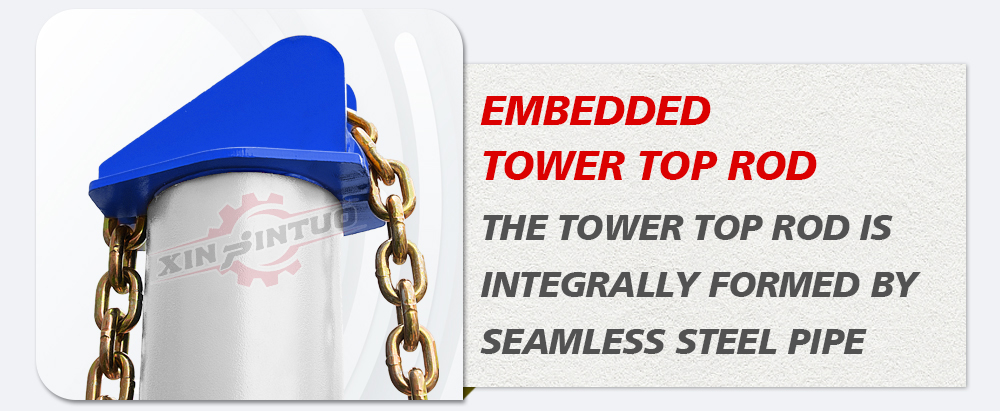

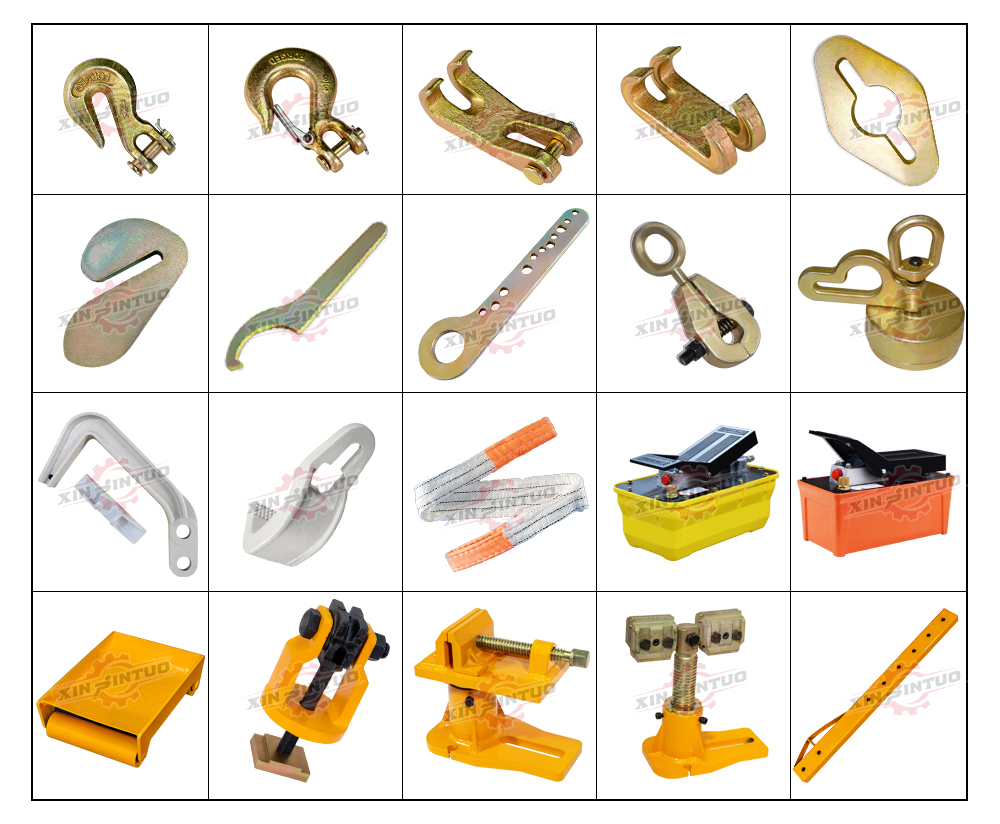

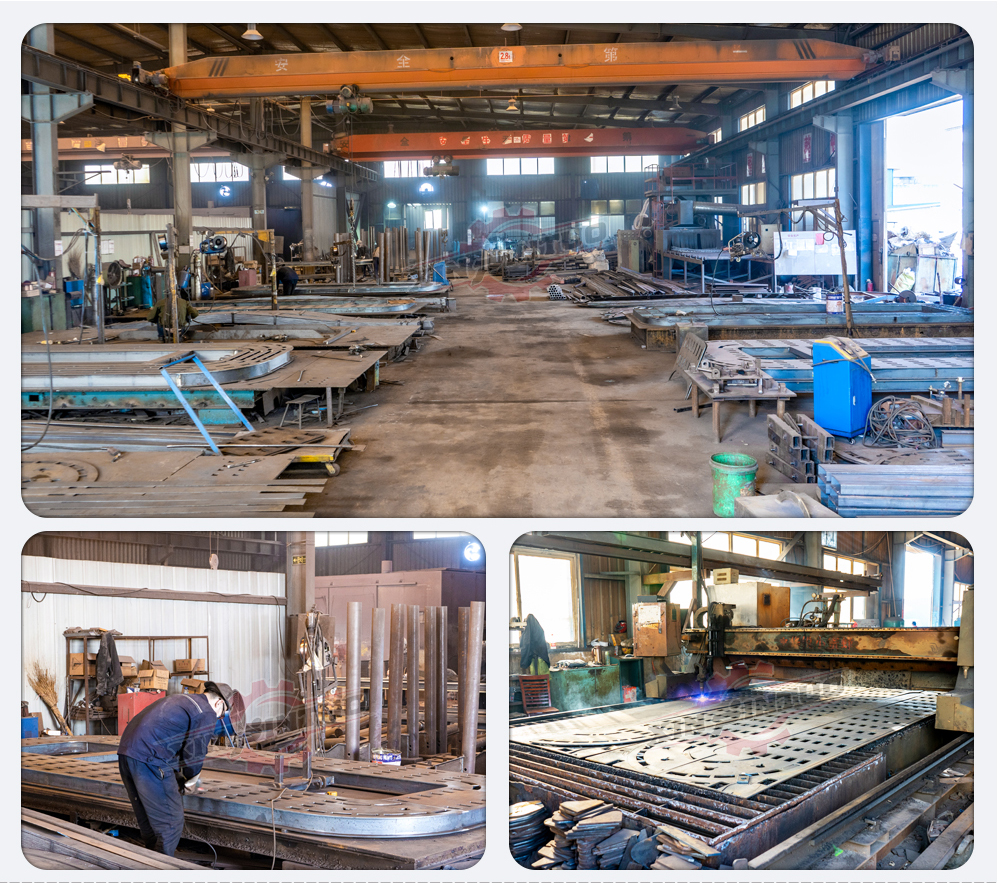

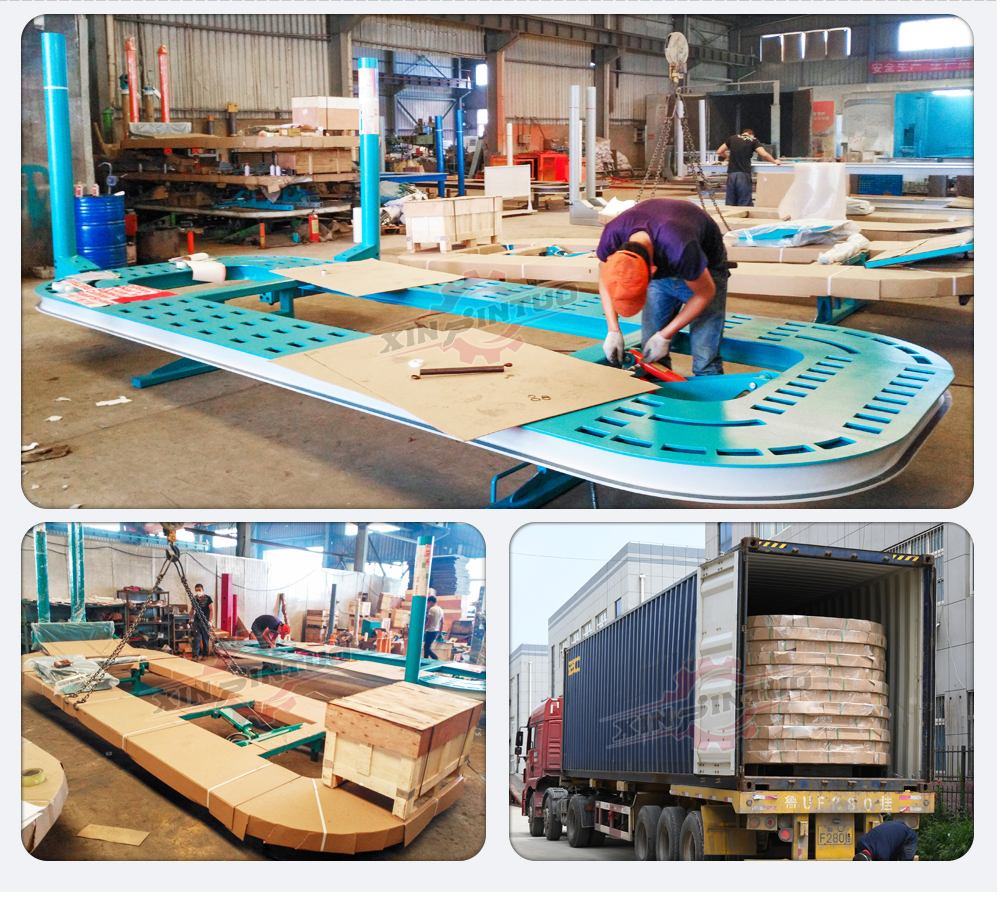

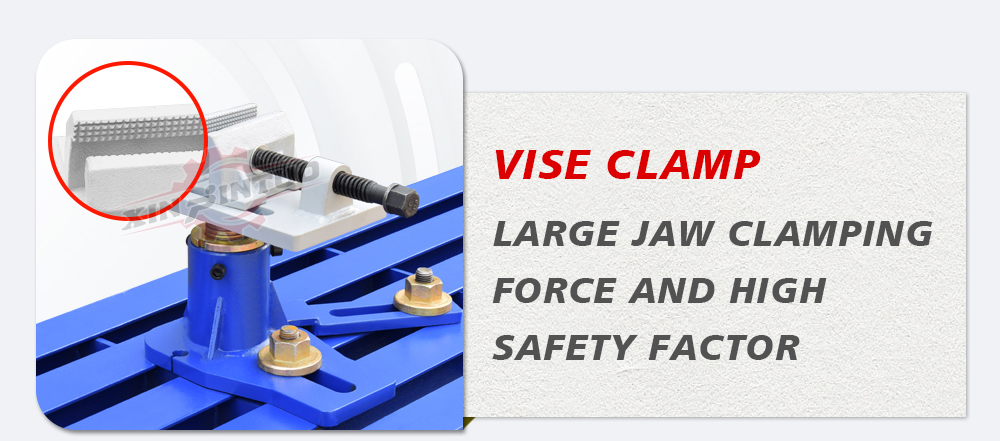

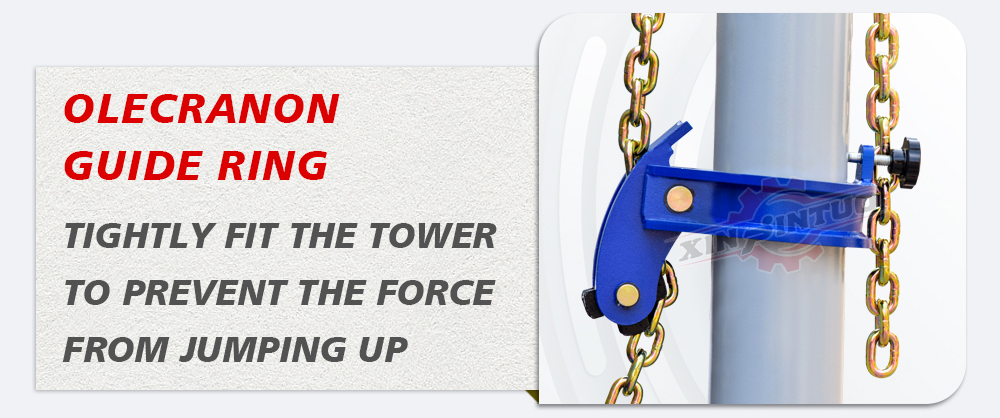

详情_03car frame machine descriptioncar frame machine vise clampcar frame machine olecranon guide ringcar frame machine embedded tower top rodcar frame machine platformcar frame machine reinforced pulling tower8.0 chain 12mm thick chainOptional Patented square tower详情_12accessories tools for choosing详情_14car frame machine packaging详情_16car frame machine actual displaycar frame machine actual displaycar frame machine actual display详情_20car frame machine customer show详情_22JINTUO company Profile详情_24Jintuo Team详情_26Jintuo Exhibition详情_28Jintuo FactoryJintuo Factory
