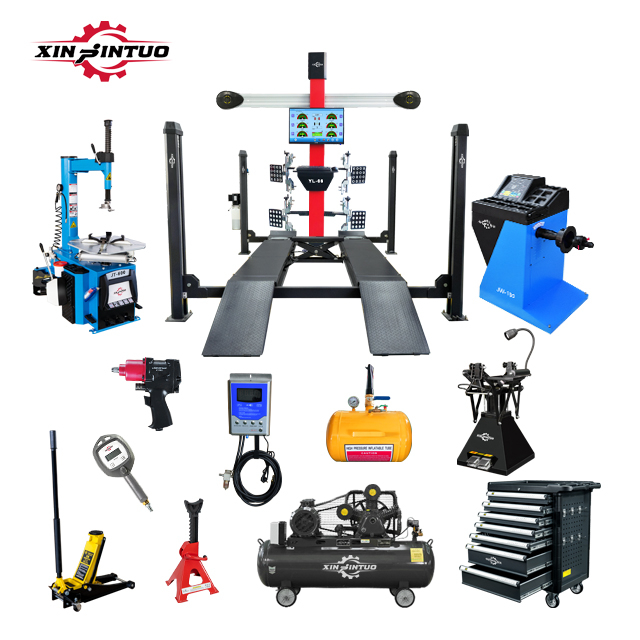

JT-600+JW-100+YL-66+JFL-4000A
Jintuo Auto Tech

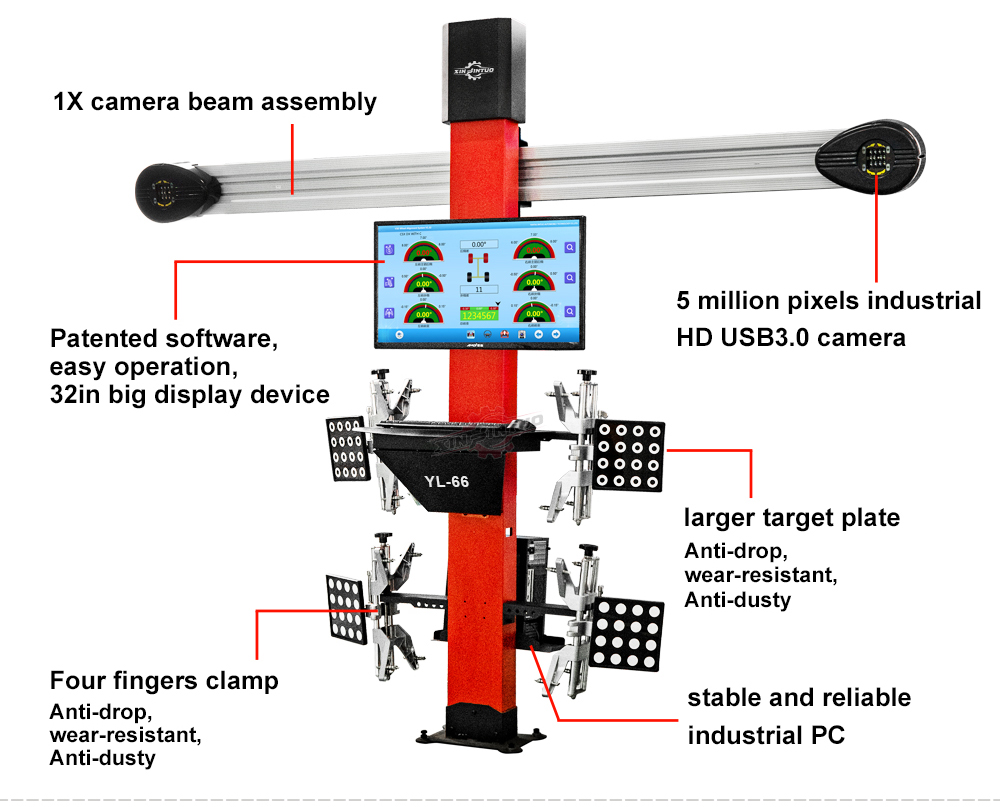

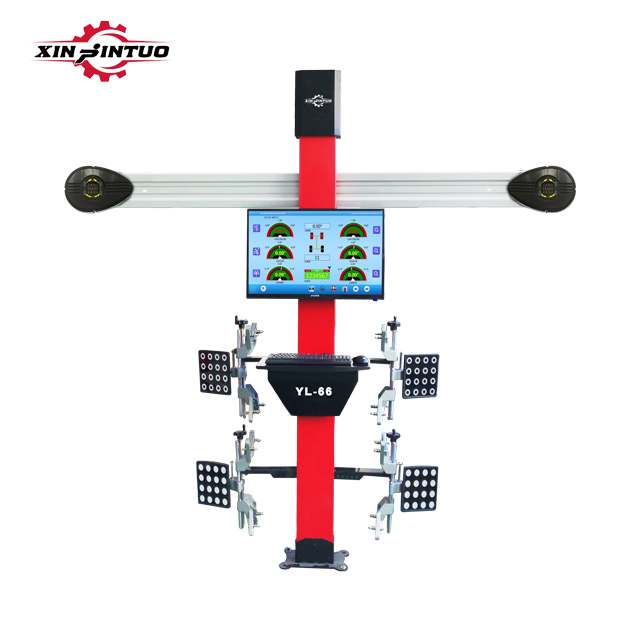

YL-66 3D Wheel Alignment | ||
MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
TOTAL TOE-IN | ±0.01° | ±40° |
EXTERNAL BEVEL | ±0.01° | ±45° |
CASTER | ±0.02° | ±45° |
S.A.I | ±0.02° | ±45° |
THRUST ANGLE | ±0.01° | ±40° |
SET BACK | ±0.01° | ±40° |
MAX.STEERING ANGLE | ±0.02° | ±50° |
WHEEL TRACK | ±2MM | 1219MM-2438MM |
WHEEL BASE | ±2MM | 2006MM-4572MM |

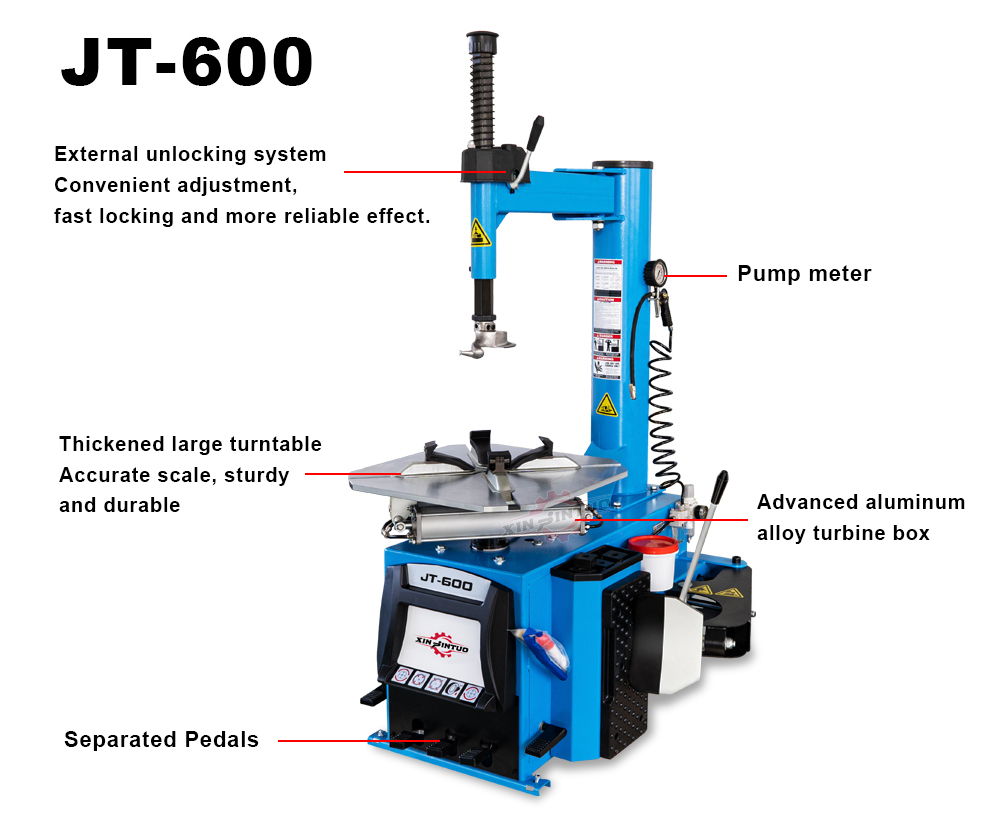

JT-600 Tire Changer | |||
Rim Clamping From Inside | 12-24" | Motor Power | 1.1KW/0.75KW |
Rim Clamping From Outside | 12-22" | Working Rotation Speed | 6.8rpm |
Rim Diameter | 1140mm/44.8" | Working Air Pressure | 8-10bar |
Voltage | 110/220/380V | Gross/Net Weight | 245kgs(539lbs)/205kgs(451lbs) |
Wheel Width | 4-13" | Packing Size | 1150x920x930mm |

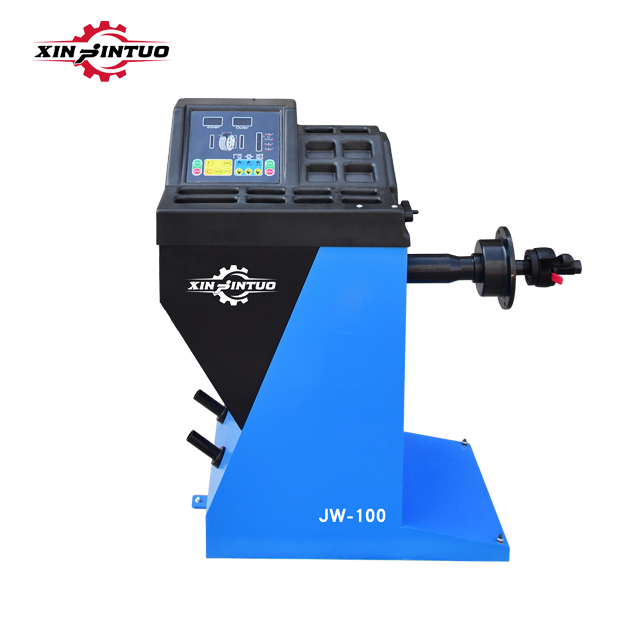

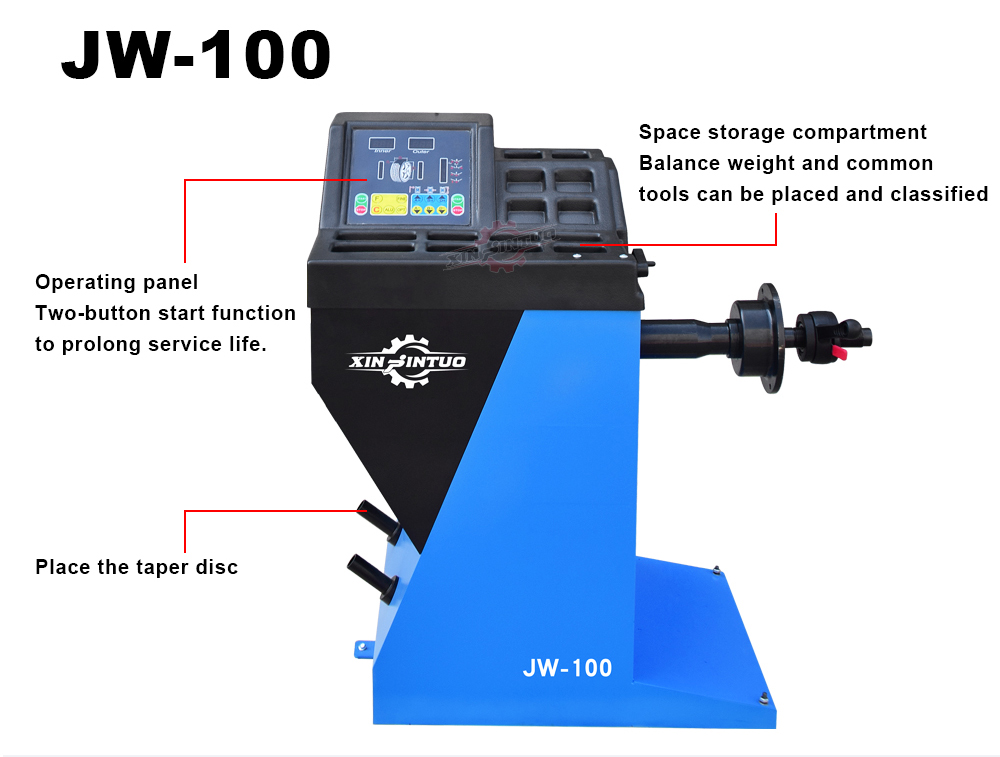

JW-100 Wheel Balancer | |||
Power | 0.25 KW | Noise | <70db |
Rim diameter | 12-24 " | Speed | 180 RPM |
Mix wheel diameter | 980 MM (38.5") | Precision | ±1 g |
Mix wheel width | 15 " | Packing | 1100 X 800 X 1100 MM |
Balance time | 7s | N.W / G.W | 98 KG (216lbs)/125KG (275.6lbs) |
YL-66 3D Wheel Alignment | ||
MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
TOTAL TOE-IN | ±0.01° | ±40° |
EXTERNAL BEVEL | ±0.01° | ±45° |
CASTER | ±0.02° | ±45° |
S.A.I | ±0.02° | ±45° |
THRUST ANGLE | ±0.01° | ±40° |
SET BACK | ±0.01° | ±40° |
MAX.STEERING ANGLE | ±0.02° | ±50° |
WHEEL TRACK | ±2MM | 1219MM-2438MM |
WHEEL BASE | ±2MM | 2006MM-4572MM |
JT-600 Tire Changer | |||
Rim Clamping From Inside | 12-24" | Motor Power | 1.1KW/0.75KW |
Rim Clamping From Outside | 12-22" | Working Rotation Speed | 6.8rpm |
Rim Diameter | 1140mm/44.8" | Working Air Pressure | 8-10bar |
Voltage | 110/220/380V | Gross/Net Weight | 245kgs(539lbs)/205kgs(451lbs) |
Wheel Width | 4-13" | Packing Size | 1150x920x930mm |
JW-100 Wheel Balancer | |||
Power | 0.25 KW | Noise | <70db |
Rim diameter | 12-24 " | Speed | 180 RPM |
Mix wheel diameter | 980 MM (38.5") | Precision | ±1 g |
Mix wheel width | 15 " | Packing | 1100 X 800 X 1100 MM |
Balance time | 7s | N.W / G.W | 98 KG (216lbs)/125KG (275.6lbs) |
