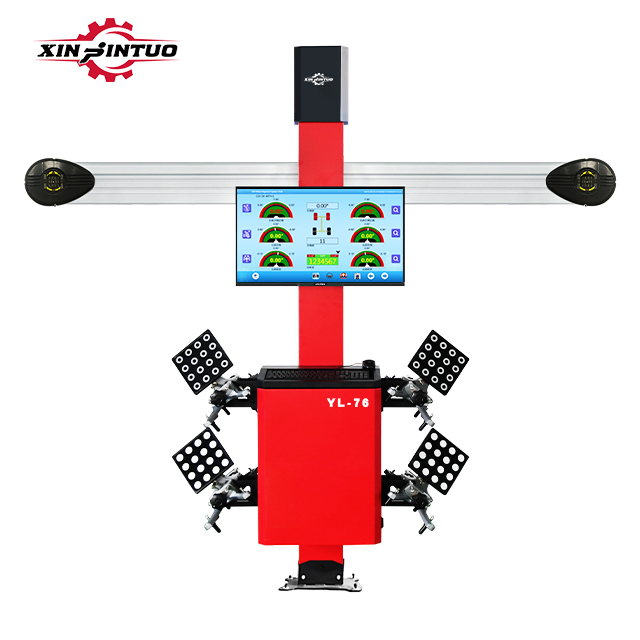

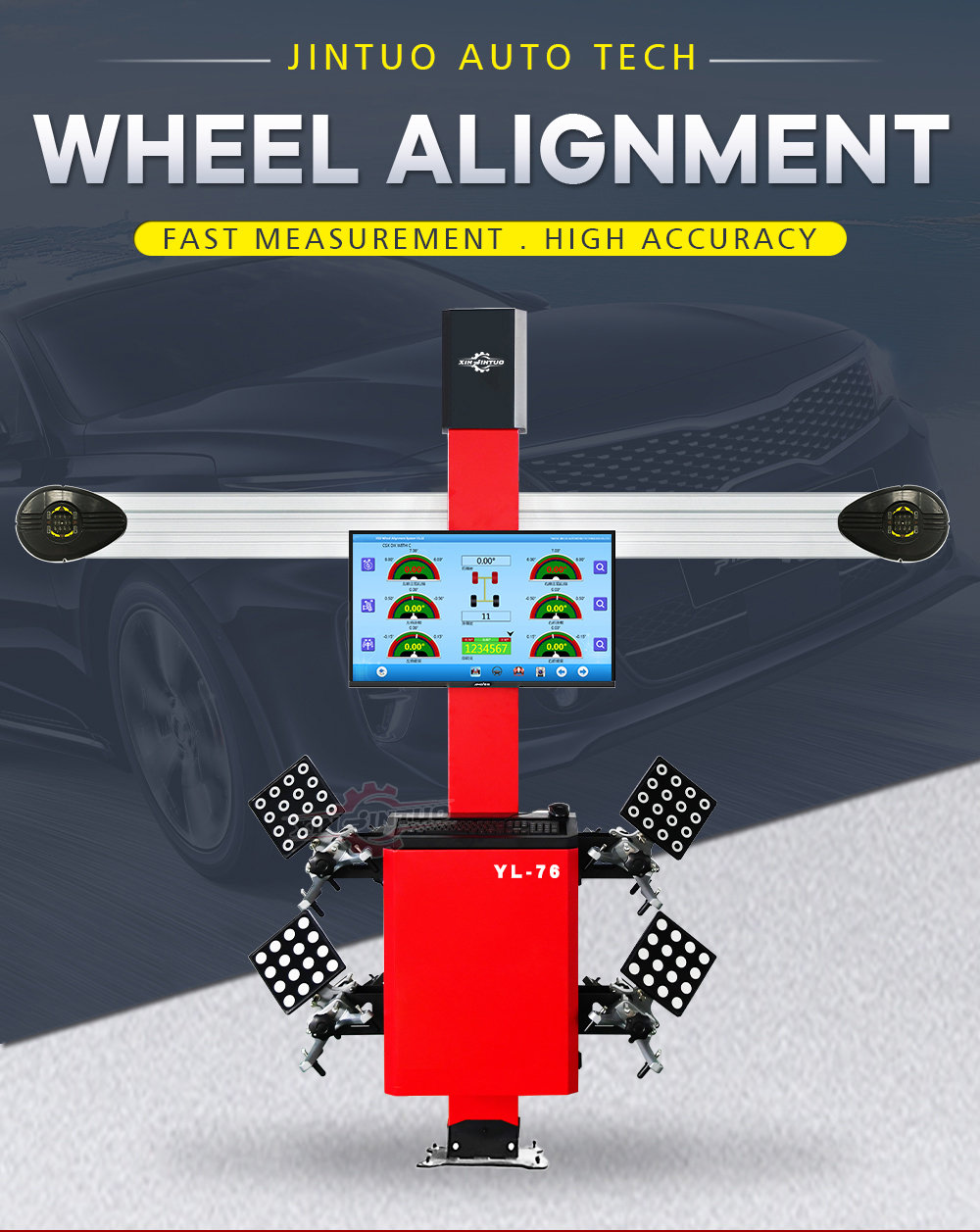

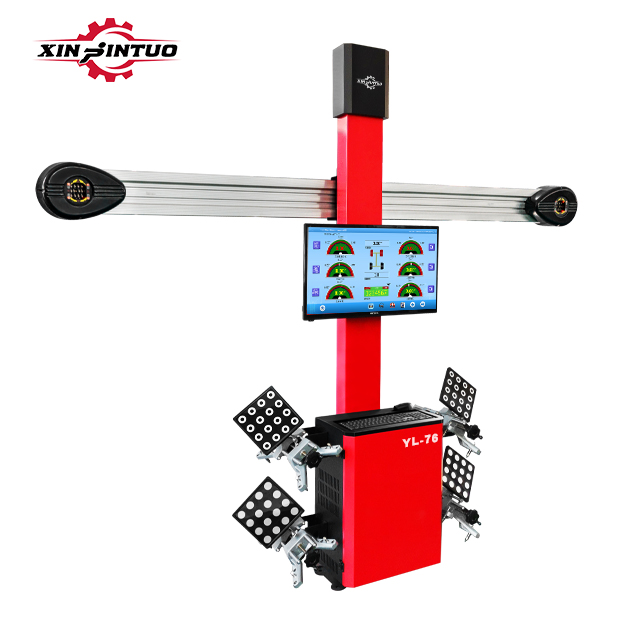

YL-76
Jintuo Auto Tech
Product parameters：
| MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
| TOTAL TOE-IN | ±0.01° | ±40° |
| EXTERNAL BEVEL | ±0.01° | ±45° |
| CASTER | ±0.02° | ±45° |
| S.A.I | ±0.02° | ±45° |
| THRUST ANGLE | ±0.01° | ±40° |
| SET BACK | ±0.01° | ±40° |
| MAX. STEERING ANGLE | ±0.02° | ±50° |
| WHEEL TRACK | ±2MM | 1219MM-2438MM |
| WHEEL BASE | ±2MM | 2006MM-4572MM |
Product Description:

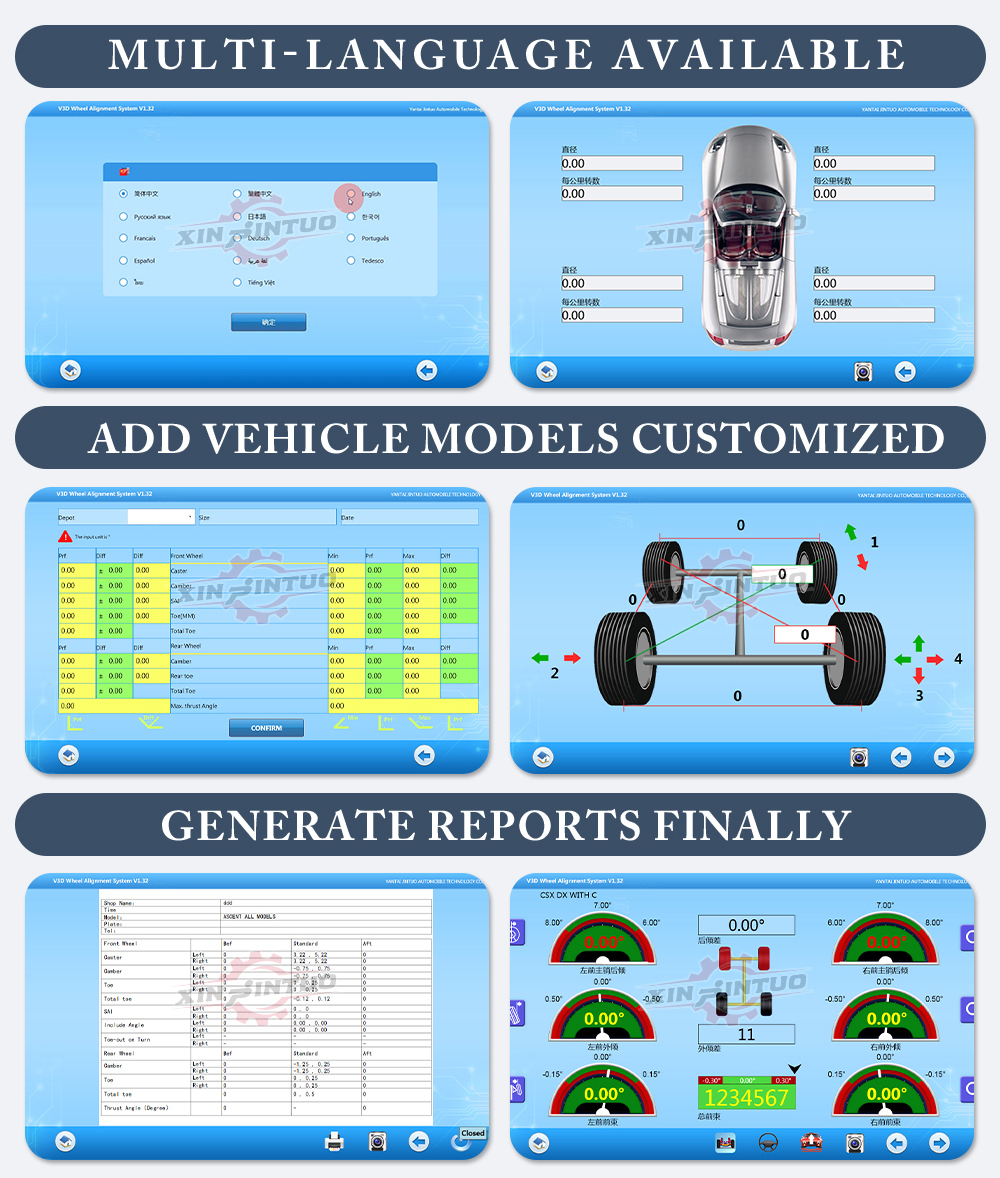

1. Windows 7 System,operation process can be easily guided by"Next step"instruction.
2. Exceed 20,000 data base around the world and with a life time update service.
3. Repeat measurement accuracy is ±0.01,which be a world's leading level.
4. Measurement Angle:Toe,Camber,Caster,S.A.I,thrust angle,Setback angle,Max turning angle,Wheel tread, Wheel base,Wheel rolling redius.

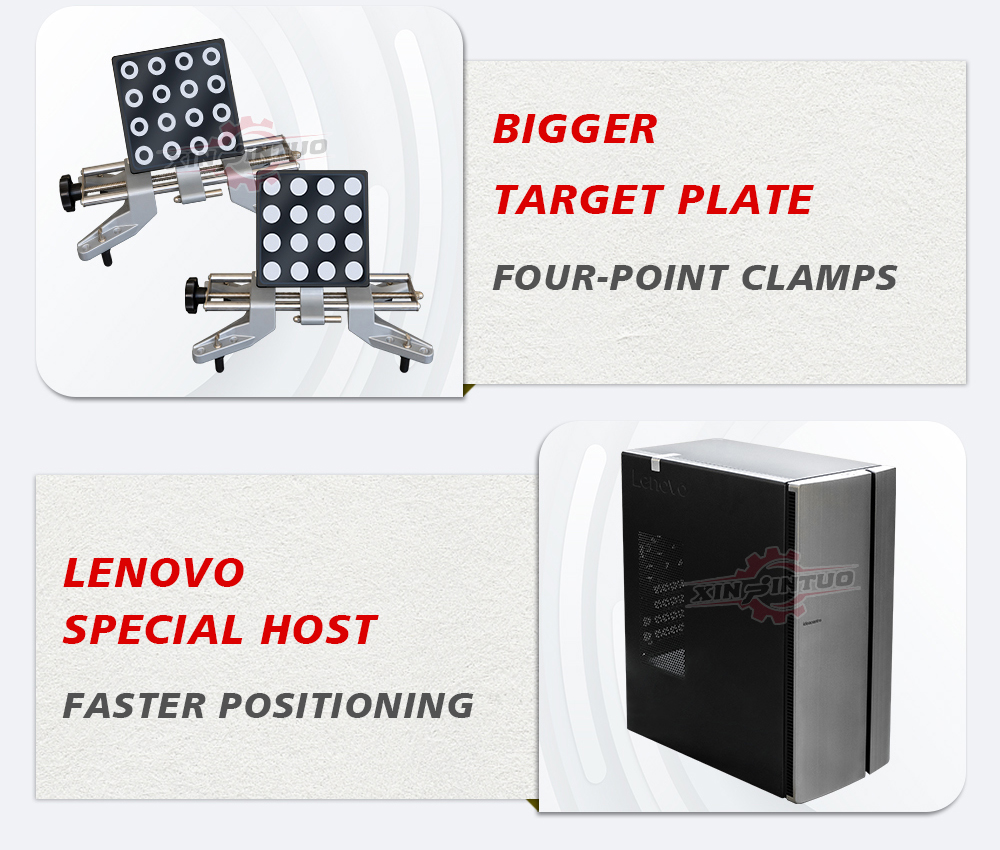

5. Fast installation,suitable for all rims between12''-23''. Double chuck,which can install both on iron and aluminum wheel hub.

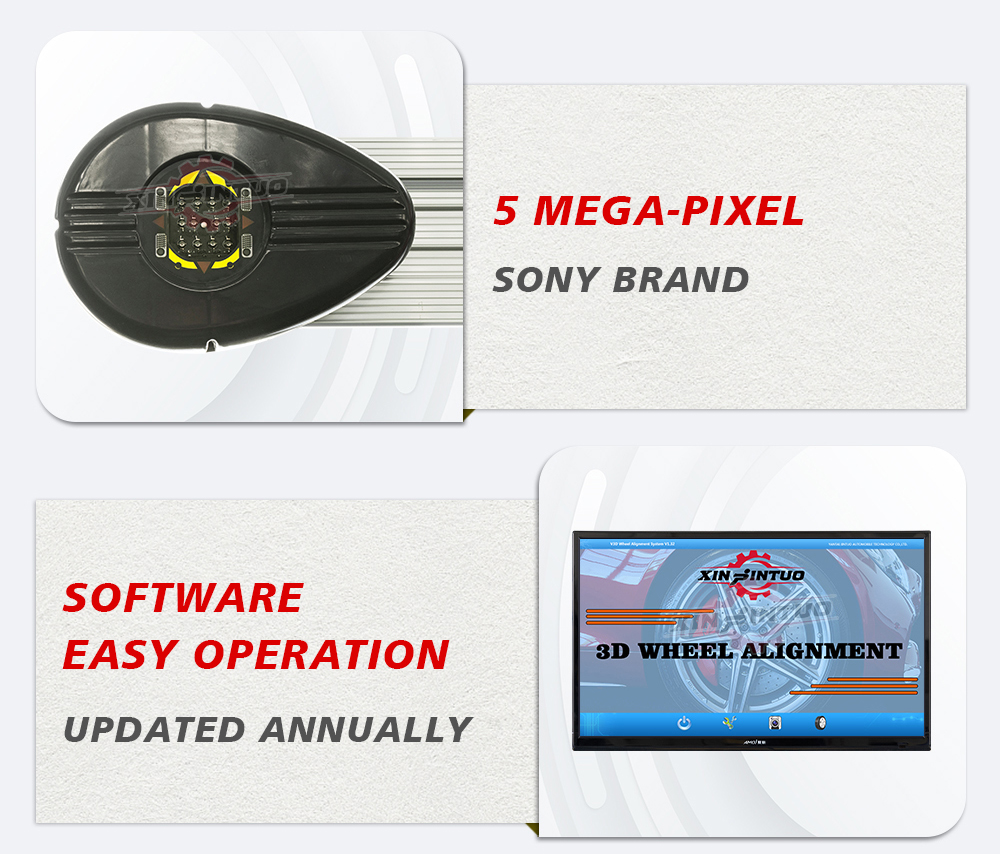

6. 5 million high definition camera:it can also assure accurate alignment measurement when target plates get smaller.Intelligent LED navigation system:the operator doesn't need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.
7. We use a thickened cold rolled sheet to bending into the integrated post, so that the camera system will not be disturbed by vibration after installation.
Please consult the product manager for more product functions and introductions!
