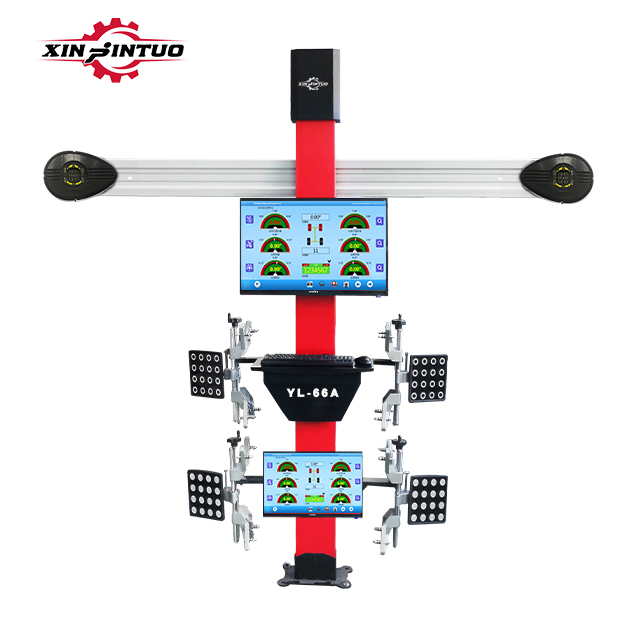

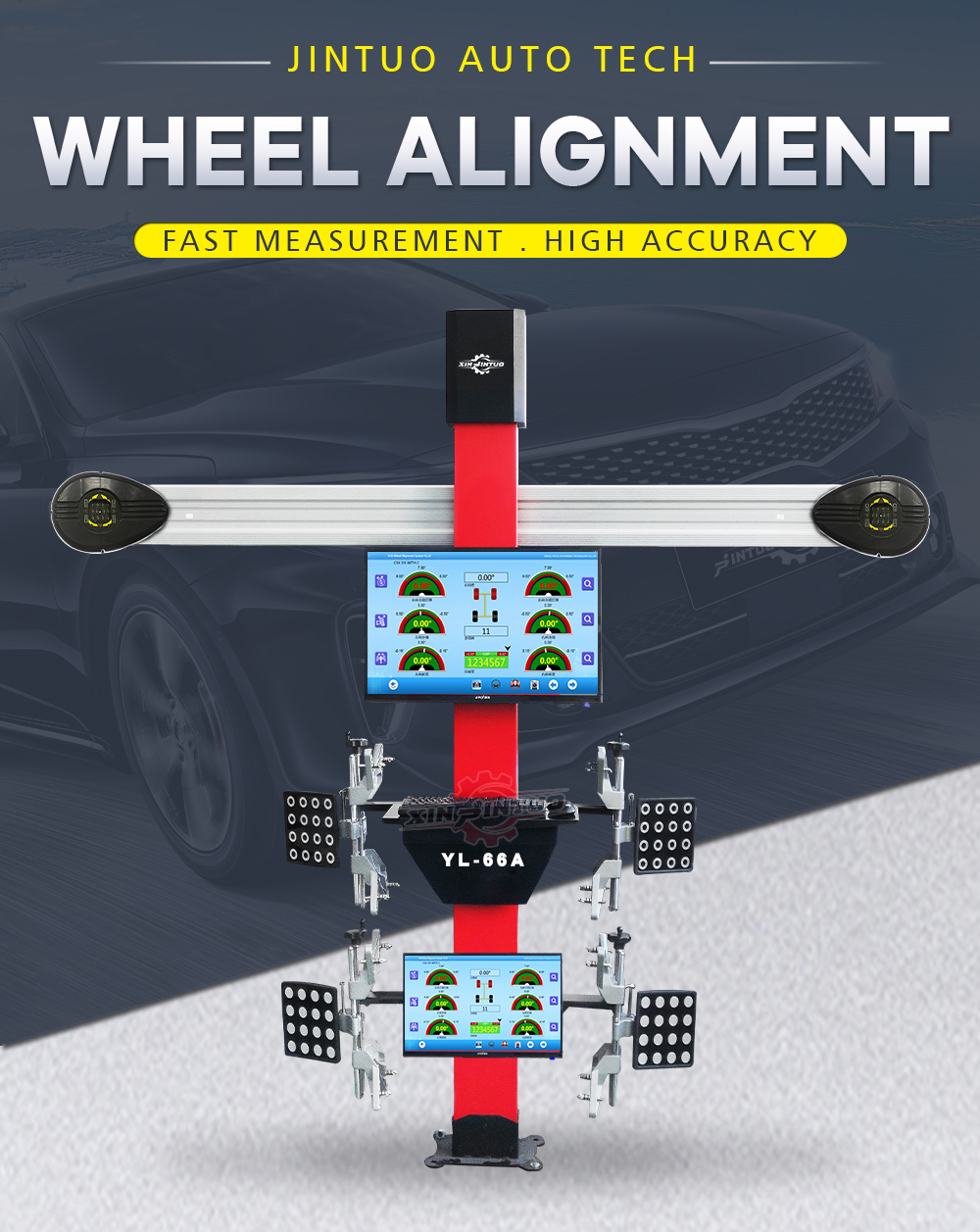

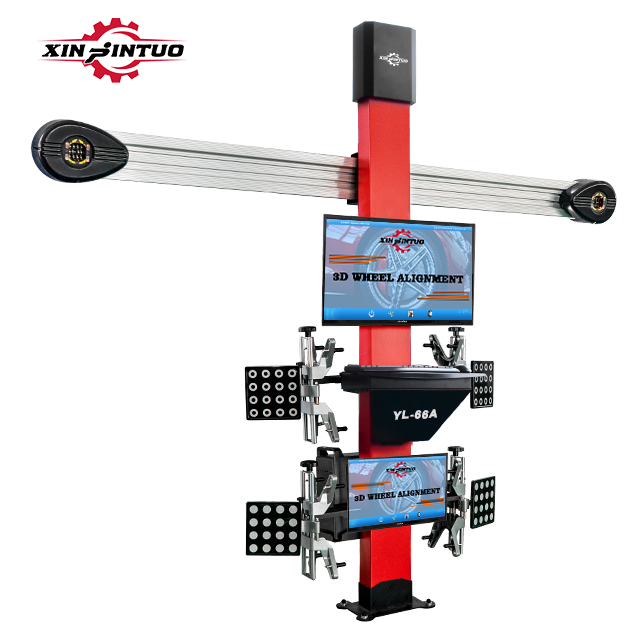

YL-66A
Jintuo Auto Tech
Product parameters：
| MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
| TOTAL TOE-IN | ±0.01° | ±40° |
| EXTERNAL BEVEL | ±0.01° | ±45° |
| CASTER | ±0.02° | ±45° |
| S.A.I | ±0.02° | ±45° |
| THRUST ANGLE | ±0.01° | ±40° |
| SET BACK | ±0.01° | ±40° |
| MAX. STEERING ANGLE | ±0.02° | ±50° |
| WHEEL TRACK | ±2MM | 1219MM-2438MM |
| WHEEL BASE | ±2MM | 2006MM-4572MM |
Product Description:
1. Global vehicle's original database: Owning more than 25,000 original vehicledatabase from different region around the world.

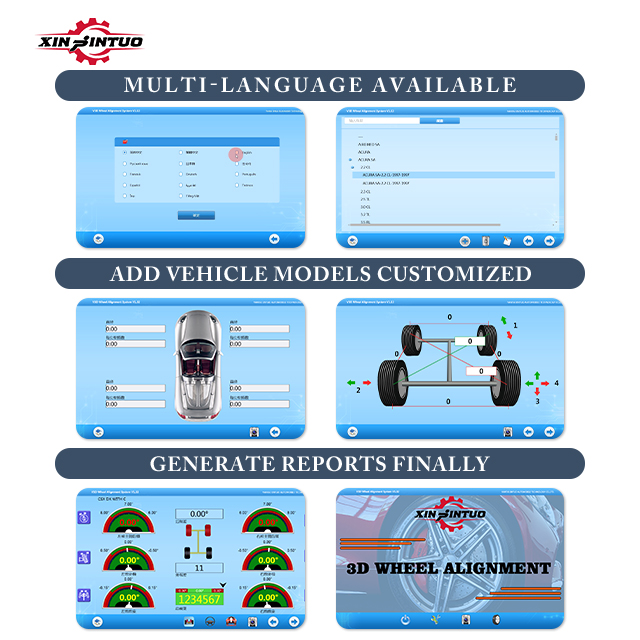

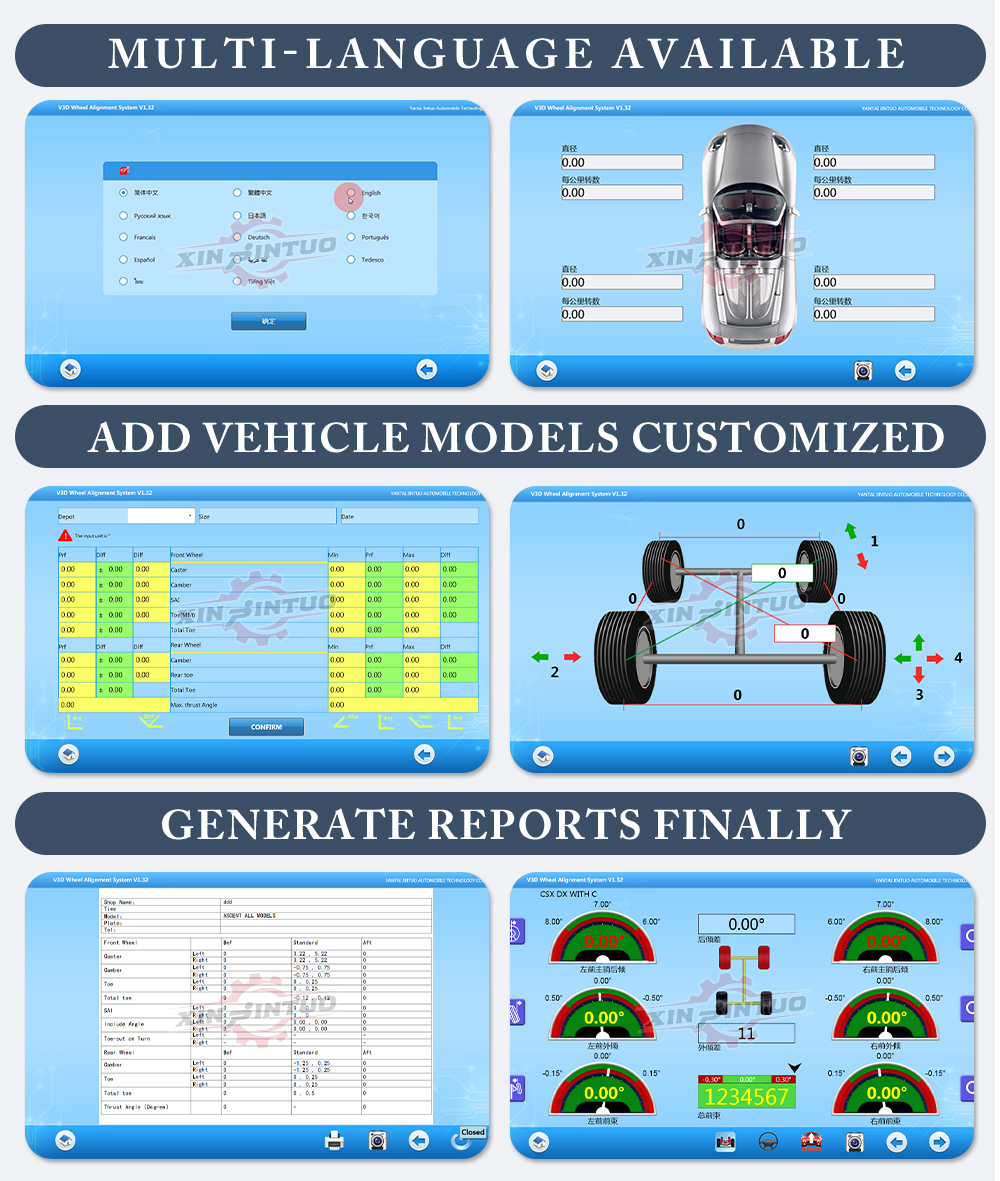

2. Data preview:Front , rear wheel's measurement resultcan be displayed in oneinterface.
3. Assistant 3D animationfor adjusting.
4. Alignment history : quick search for vehicle registration number and customer.
5. Special function detection & accident vehicle measurement system.

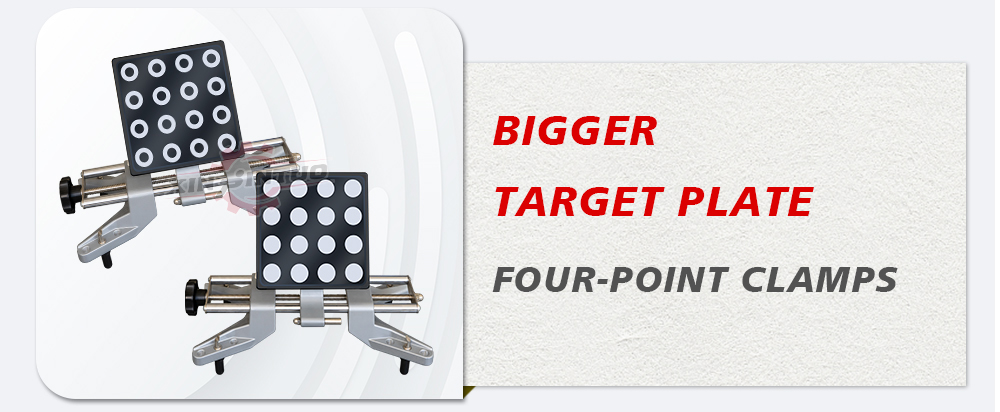

6. New material panel,which can reduce the interference of external light,make sure the data more accurate more stable.

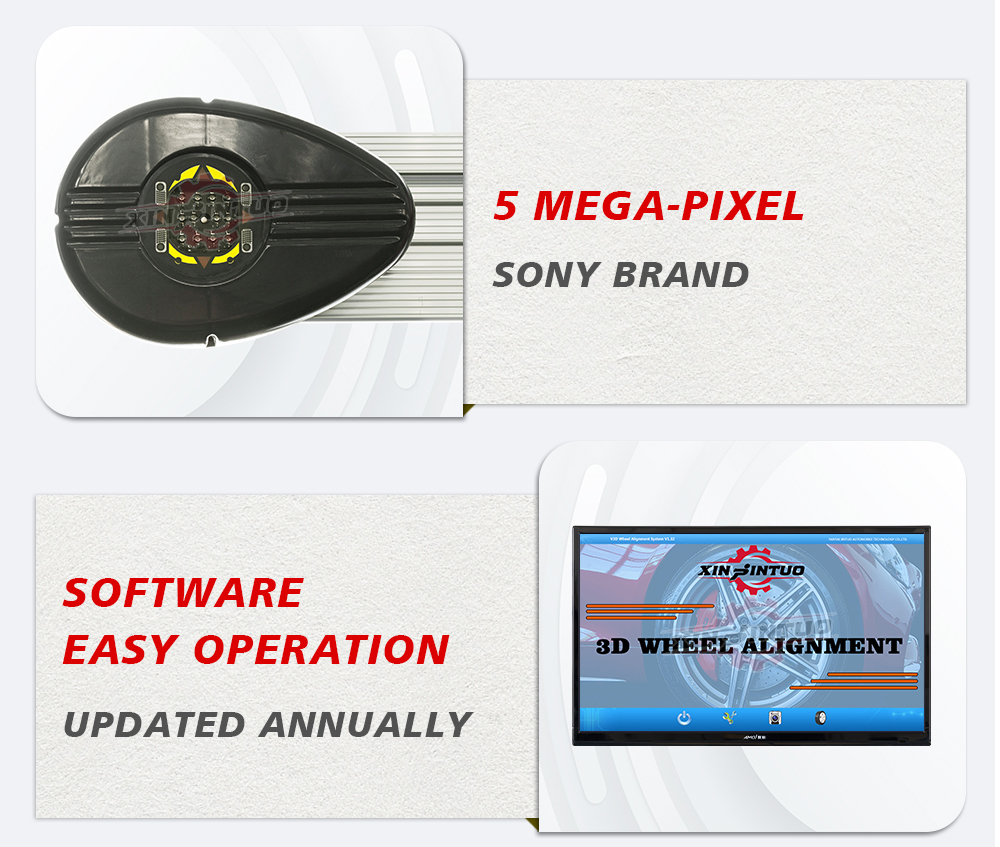

7. Video speed camera technology for afaster and more responsive alignment system.
Please consult the product manager for more product functions and introductions!
