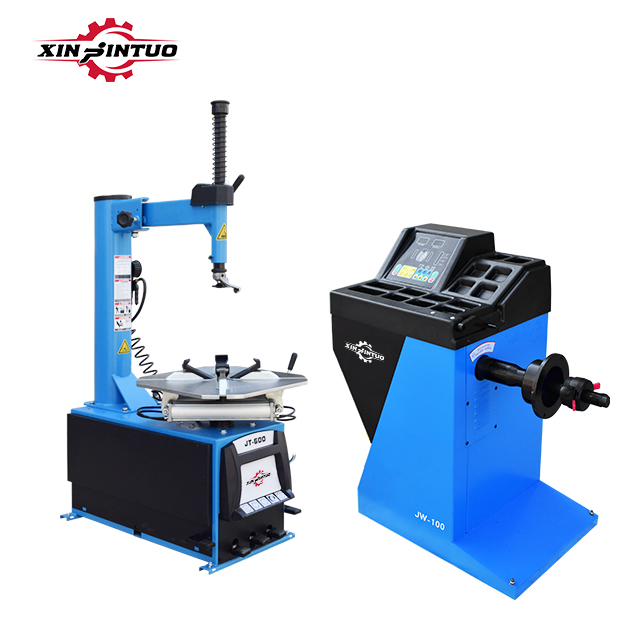

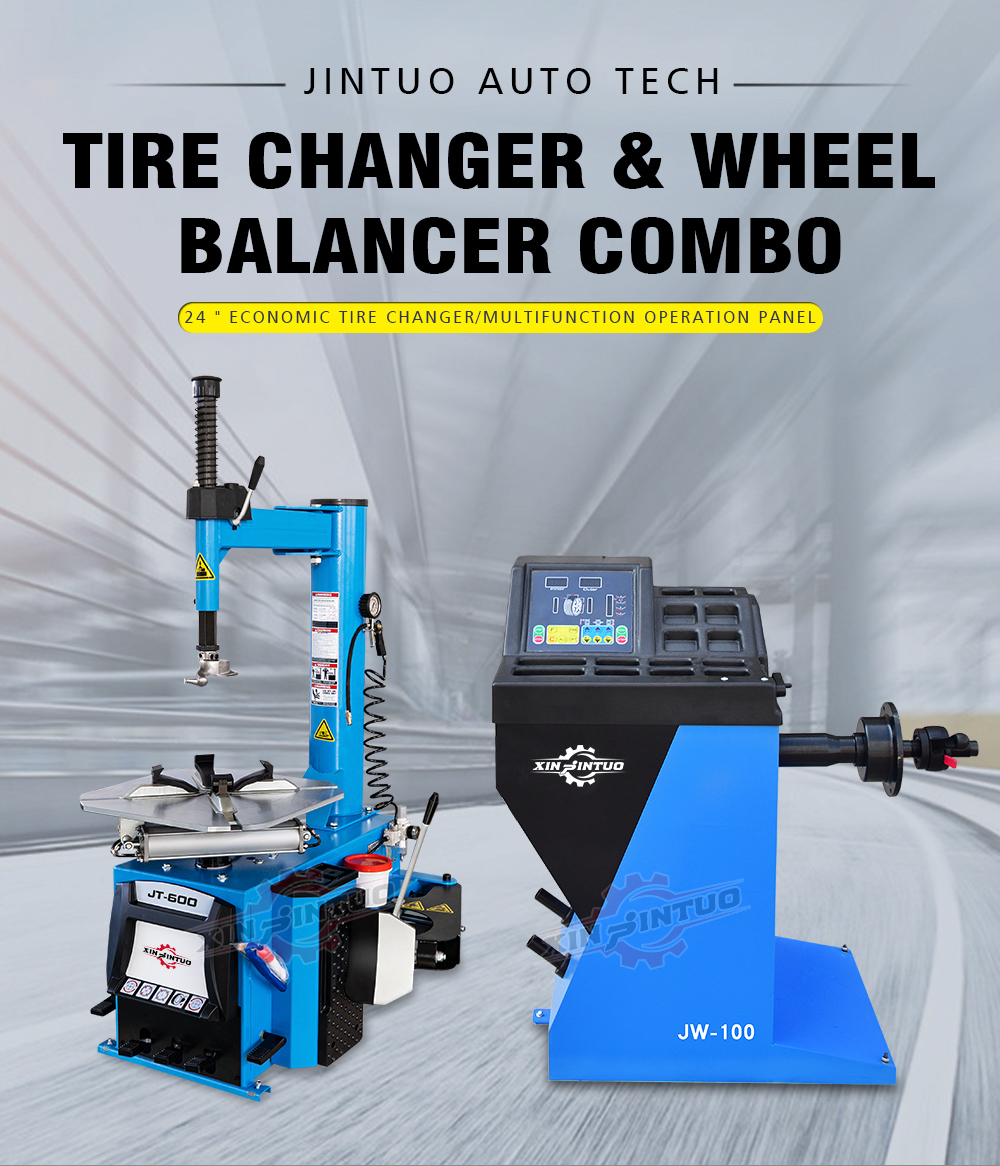

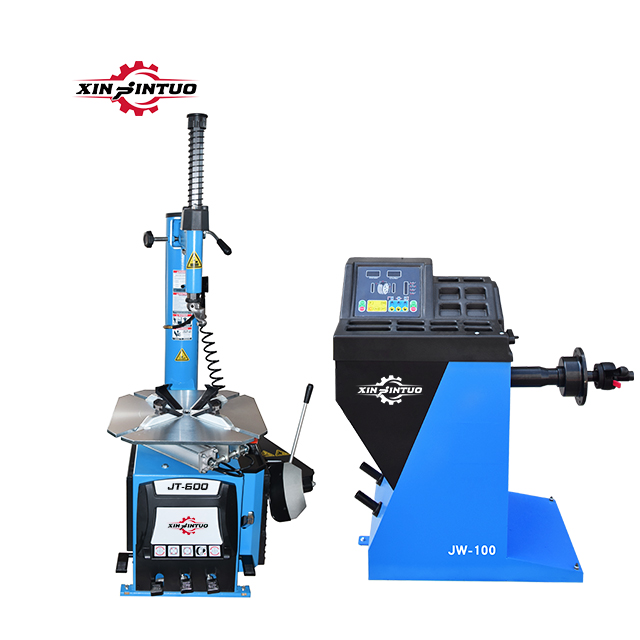

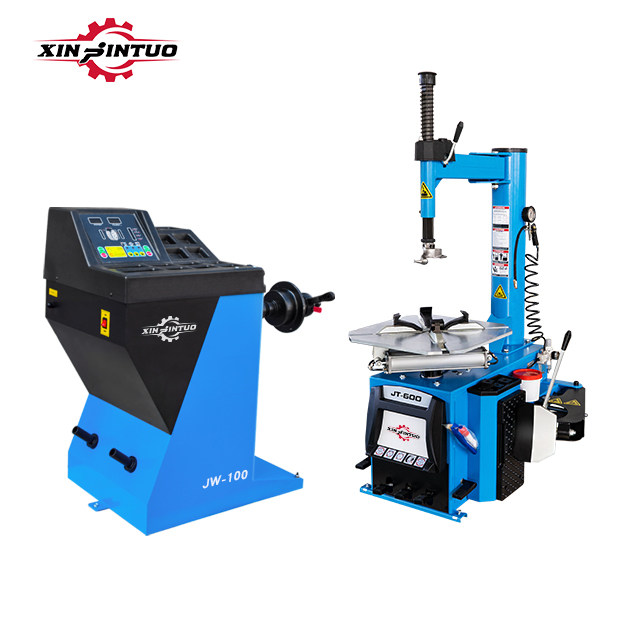

JT-600+JW-100
Jintuo Auto Tech
Product parameters：
| Tire Changer & Wheel Balancer Combo | |||
| Tire Changer JT-600 | Wheel Balancer JW-100 | ||
| External Rim Size | 10"-20" | Rim Diameter | 12"-24" |
| Internal Rim Size | 12"-24" | Max.Tire Diameter | 38.5"(980mm) |
| Max.Wheel Diameter | 44.88"(1140mm) | Tire Width | 15" |
| Tire Width | 4"-13"(101-330mm) | Max.Tire Weight | 70kg(154lbs) |
| Working Rotation Speed | 6.8 rpm | Rotation Speed | 180rpm |
| Working Pressure | 8-10bar | Balance | 7s |
| Motro Power | 1.1kw | Motor Power | 0.25kw |
| Power Supply | 110V/120V/220V/240V | Power Supply | 110V/120V/220V/240V |
| Machine Size | 1100*900*880mm | Machine Size | 1080*550*920mm |
| N.W./G.W | 200/240KG | N.W./G.W | 98/125KG |
| Packing Size | 1150*920*930mm | Packing Size | 1100*800*1100mm |
Product Description:

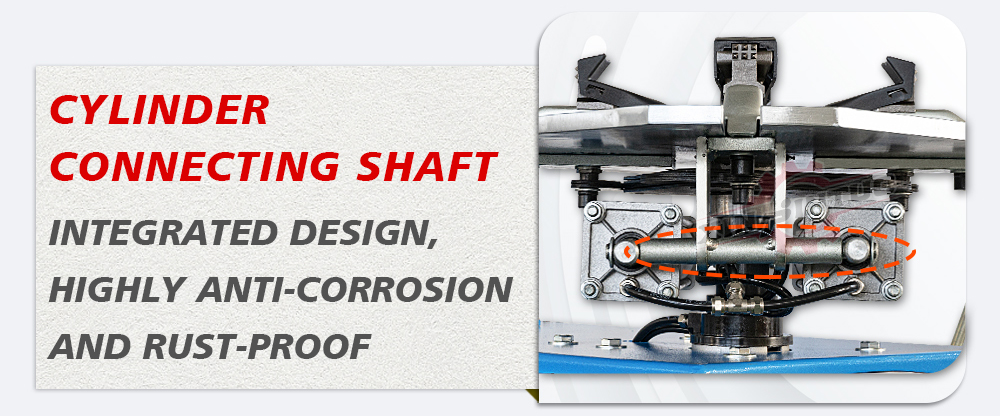

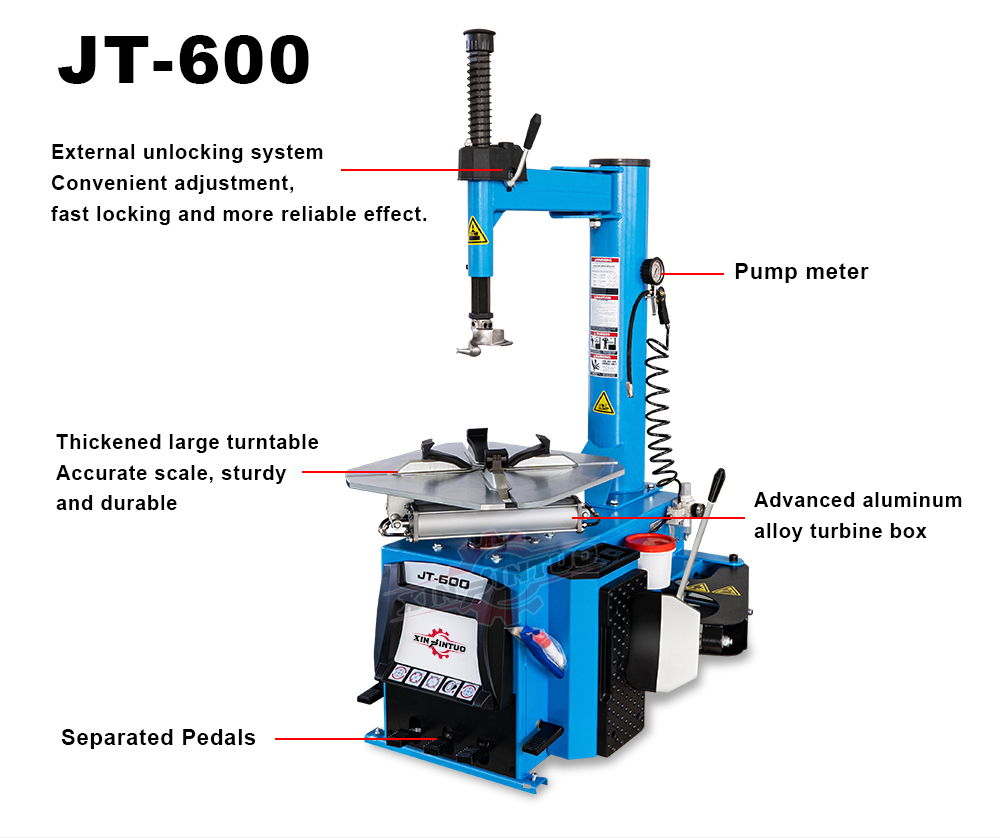

1. High density aluminium casting bead breaker cylinder piston provide inceased service life.

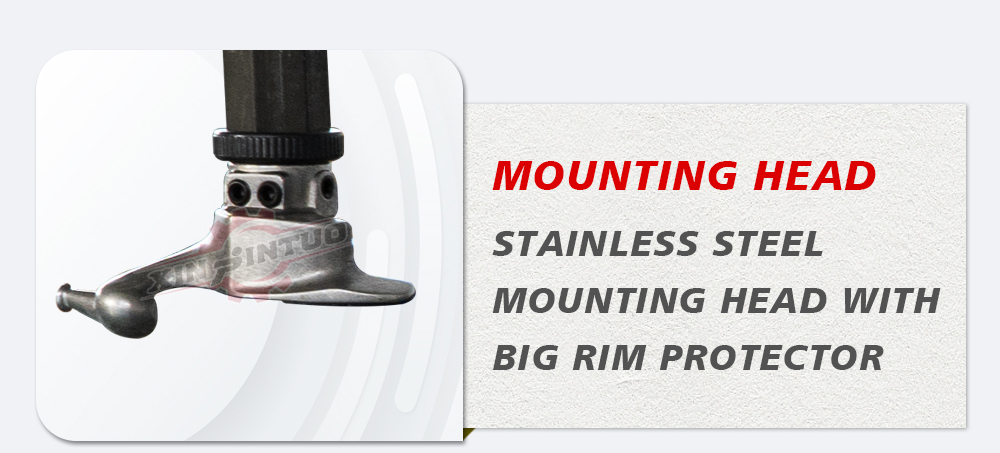

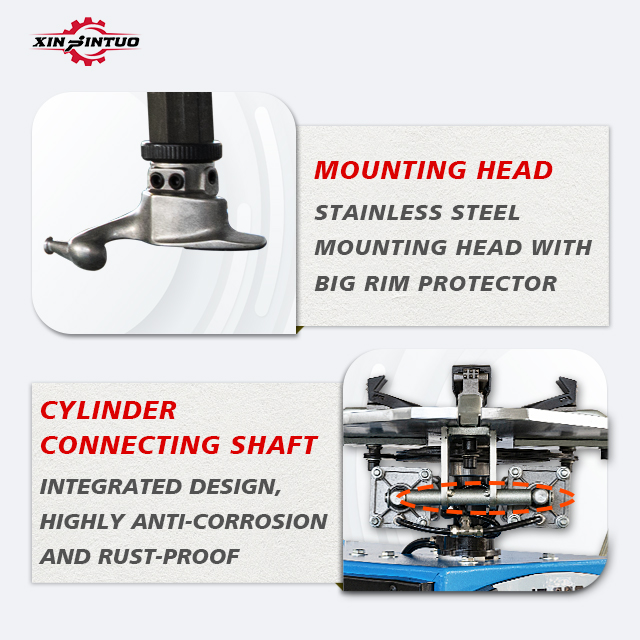

2. Alloy disassembly and assembly head, wear resistance. impact resistance,plus protection pad, protecting wheel hub.
3. The round working turntable has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
4. The foot pedals adopt the separable aluminium alloy foot pedal assembly, which is convenient and quick for maintenance,the surface is anti-skid design.

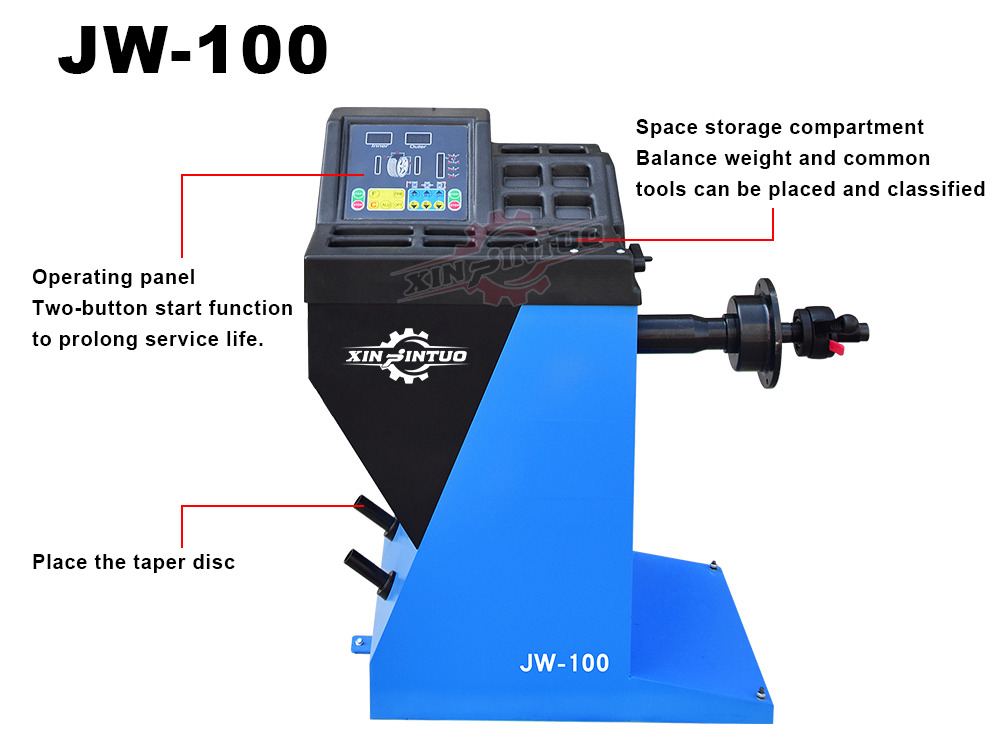

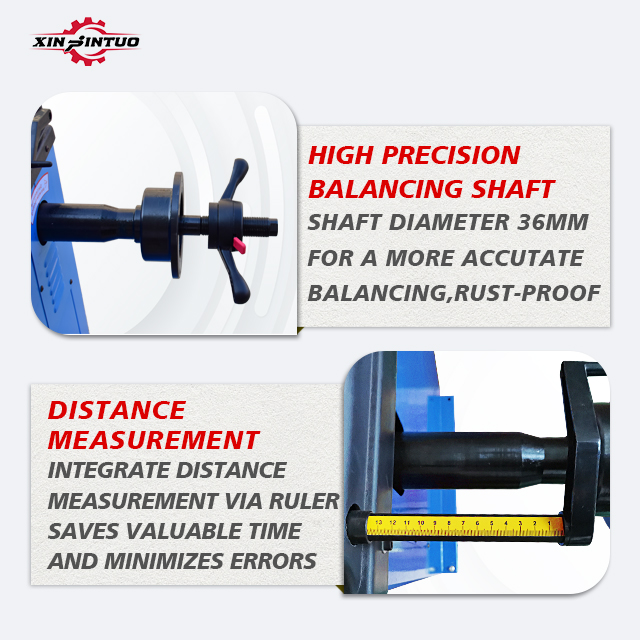

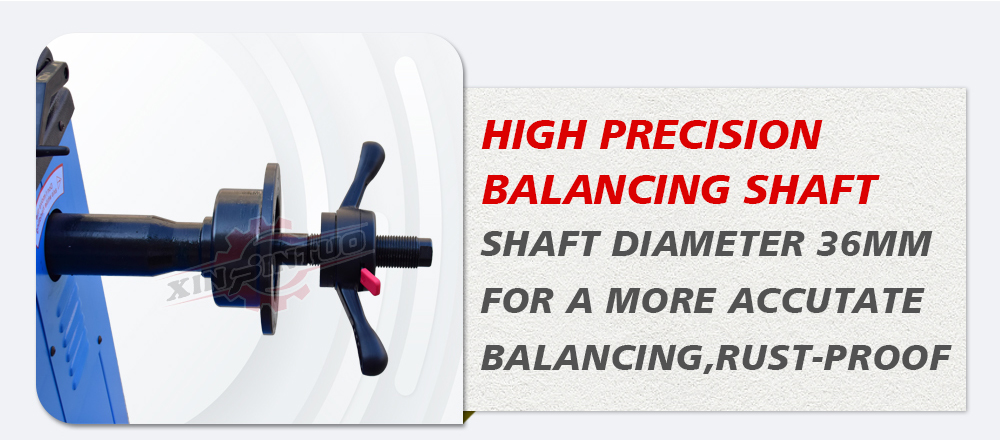

5. Wheel balancing Machine adopts Precision Spindle with Low Speed Bearing.Phosphating treatment of spindle, anti-corrosion and anti-rust.
6. The top cover of injection moulding process ensures beauty and strength,and the multi-station toolbox facilitates the classification of balance blocks.

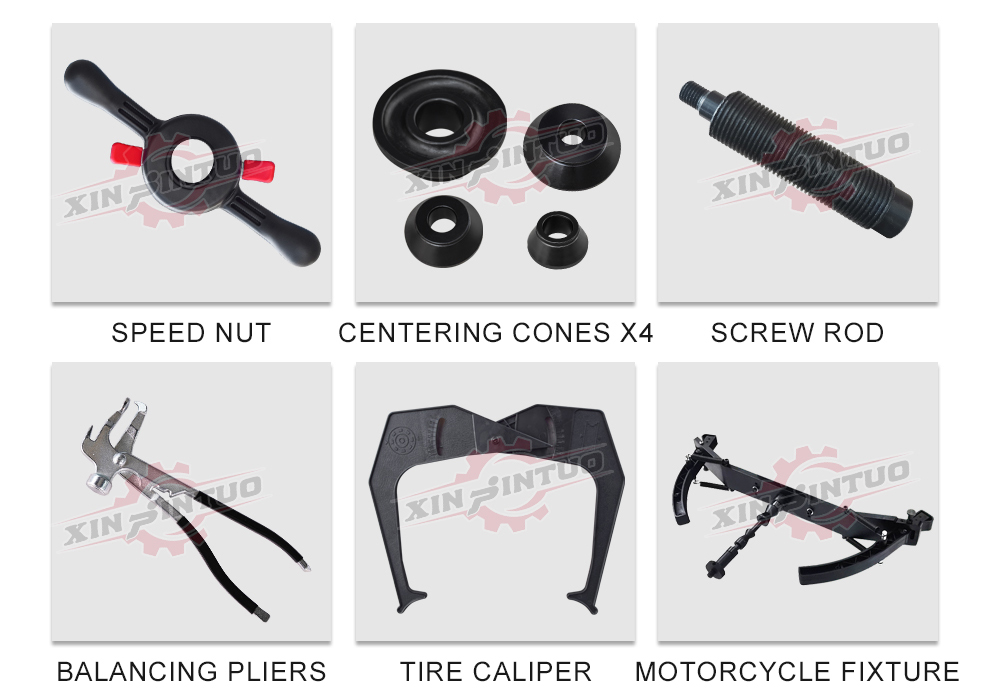

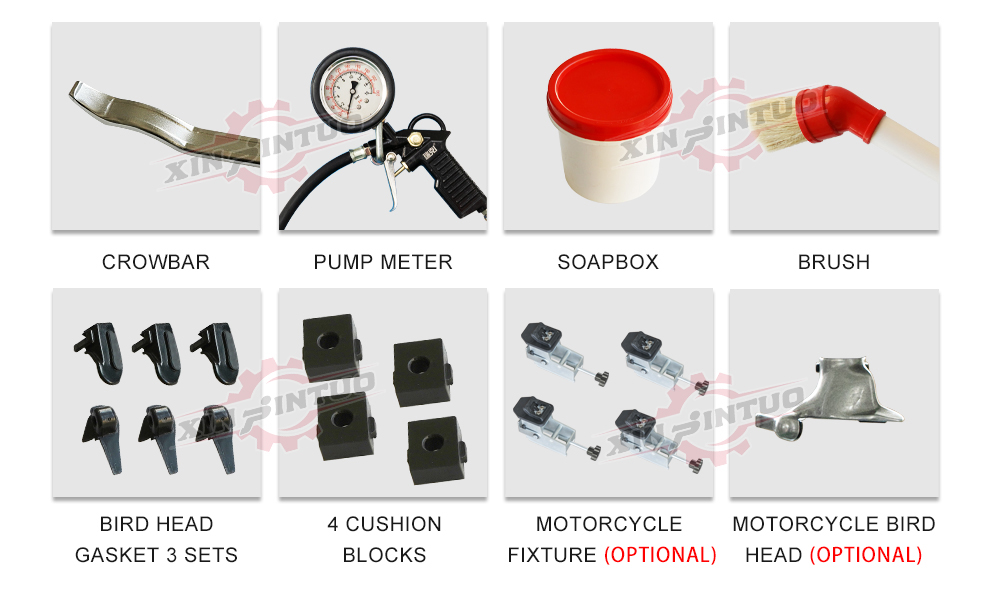

7. Extra Motorcycle tire clamp allows you to save money on another machine.
8. With CE certificate
Please consult the product manager for more product functions and introductions!
