JSLX-3500AU
Jintuo

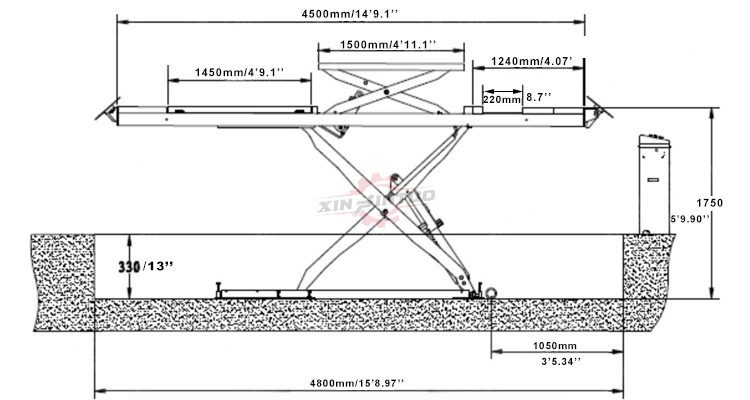

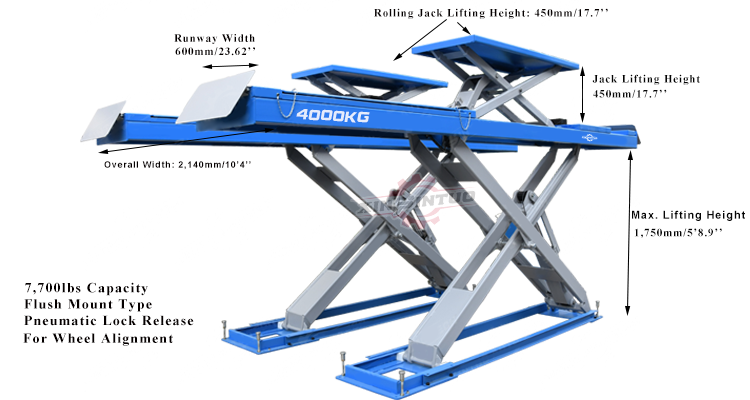

| Lifting Capacity | 3,500KGS(7,700LBS) |
| Lifting Height | 1,750MM(58.9") |
| Jack Lifting Height | 450MM(17.7") |
| Runway Width | 600mm/23.62'' |
| Overall Width | 2,140mm/10'4'' |
| Lifting Time | 50s-60s |
| Power Supply | 110V/220V/380V |
| Motor Power | 2.2KW |

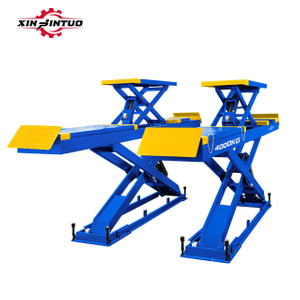

The 3500Kg hidden Wheel Alignment Scissor Car Lift for garage is suitable for small cars as a four-wheel aligner and vehicle inspection and maintenance. The main hydraulic components of this machine are assembled with high-quality components. Double-tooth, hydraulic and electrical triple protection is used, which is safe and reliable. Runs synchronously and smoothly.
1. It adopts the sub-mother structure of the earth Tibetan, which occupies a small space.
2. Start to unlock, safe and reliable. ,
3. The hydraulic system adopts advanced integrated valve plate oil circuit and imported seals.
4. In the event of a power failure, the car can also be safely lowered and driven out manually.
5. The platform is composed of pure national standard 120mm channel steel.
6. The oil cylinder is guaranteed for 2 years, and the pressure relief oil leakage will be replaced free of charge during the warranty period.
7. The power unit adopts the international famous brand pure copper core motor.
8. The support arm adopts the international square tube structure, which is not twisted or deformed.

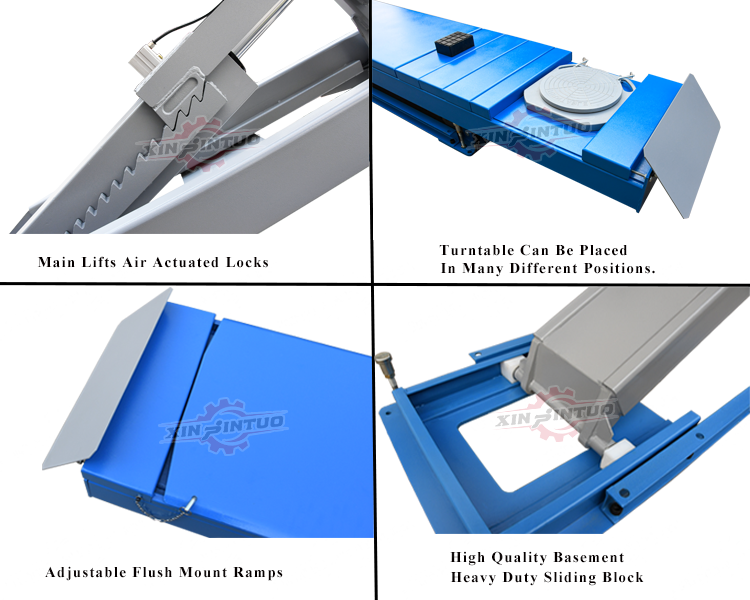

Main lift air actuated locks Wheel alignment turntable placement
Adjustable flush mount ramps Heavy duty sliding block
Company Information
YANTAI JINTUO AUTOMOBILE TECHNOLOGY CO.,LTD. was founded in 1996, which is located in Yantai city. It specializes in auto body repair system, auto lift and tire equipment with technology development, product development, production, sales and service. Our company has passed the ISO9CE certified 3000kgs inground car scissor lift for sale, and our products has got CE approved, now we have some national patents, which show that we have a professional R&D Team. Our auto body repair system has been widely exported all over the world and are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. We has participated in domestic professional equipment exhibitions and global body repairs in Las Vegas for several years. The Equipment Exhibition (NACE) has won unanimous praise and has become a world-renowned professional equipment manufacturer.
Welcome you choose "JINTUO" brand, We will provide you with our heart.
1. Are you a trading company or factory?
Answer: We are factory. We manufacture this full-rise scissor lift in our own factory.
2. Does your lift have any certificate?
Answer: Our lift is CE certified and comply with ISO.
3. What is your lift quality?
Answer: We manufacture good lift from good material, good component and nice welding.
4. What is our price?
Answer: Our good lift has nice price, the lift is commercial grade.
5. What is your warranty?
Answer: For our lift, the cylinder has 3 year warranty, the lift has 1 year warranty.
6. What if the lift is not working during warranty?
Answer: We will send the defective part for free.
7. Do you supply installation?
Answer: We test every lift before packing, and we install the lift mostly before packing. We also have manual and video.
8. What is the payment term?
Answer: We mainly take T/T(30% Deposit, 70% before shipment), L/C, Paypal, Credit Card is available.
