JSL-3500U
Jintuo Auto Tech
Product parameters：
| Lifting Capacity | 3500kgs |
| Lifting Height | 1800mm |
| Lifting Time | 50-60s |
| Platform Length | 1560mm-1760mm |
| Platform width | 550mm |
| Voltage | 220v/380V |
| Motor Power | 2.2KW |
| Rated Oil Pressure | 20Mpa |
Product Description:
1. In-ground installation,saving the space.
2. The hydraulic system adopts the integrated valve plate system and adopts the imported seal to ensure the stability and working life of the machine.
3. Adopt electric hydraulic power system. Lifting capacity 3500 kg. Easy to remove tires, check and repair chassis, replace engine oil, etc.
4. Independent control unit adopts 24v low voltage safety control circuit, safer and easier to operate.
5. With pneumatic self-locking and explosion-proof dual safety device, safe and reliable.
6. Extensible platform design. they are typically extend about 7.87 inch, suitable for the different length of chassis vehicles.
7. High power copper motor. High quality copper movement, powerful and not easy to deform.

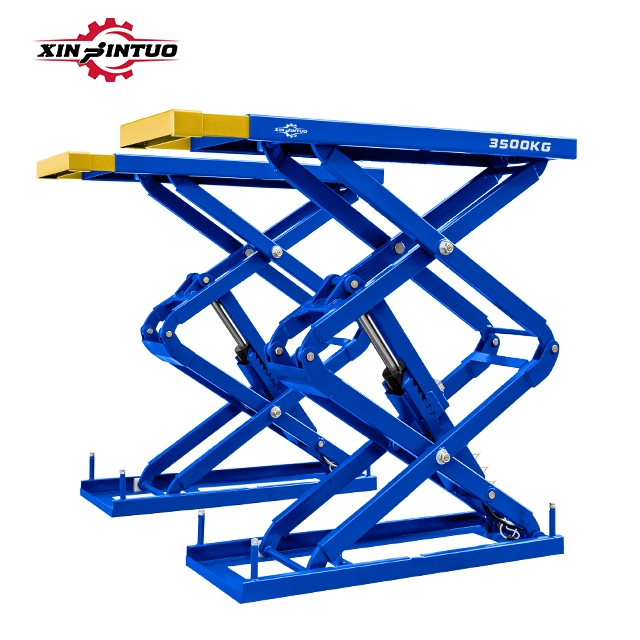

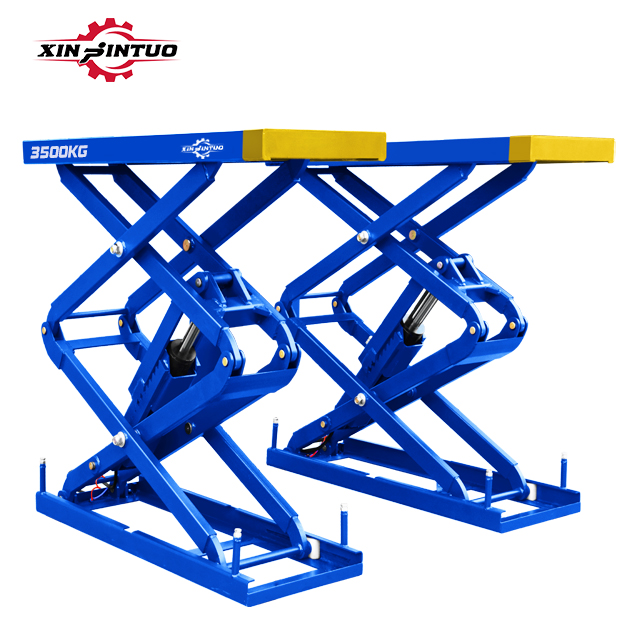

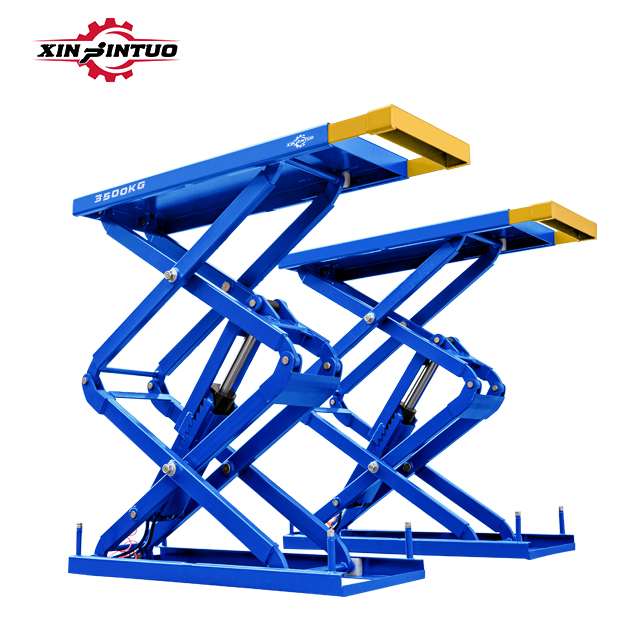

8. High strength manganese steel shear scissor lift structure is stable, stable lifting, easy installation and maintenance.
9. CE certified.
Please consult the product manager for more product functions and introductions!
