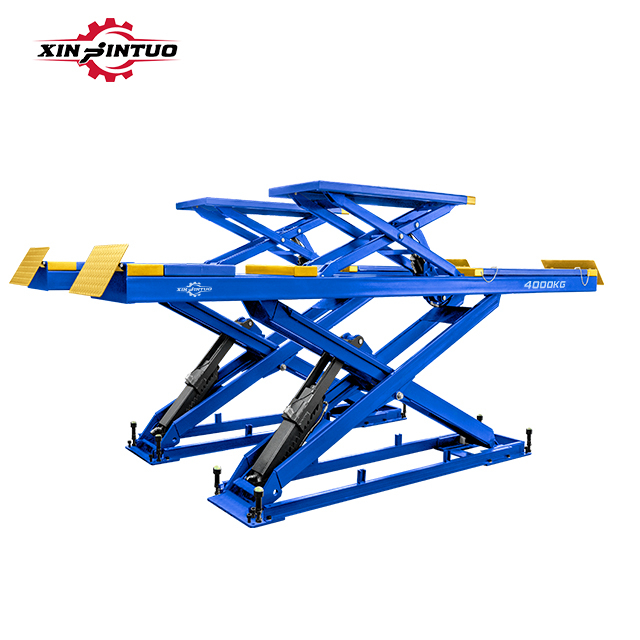

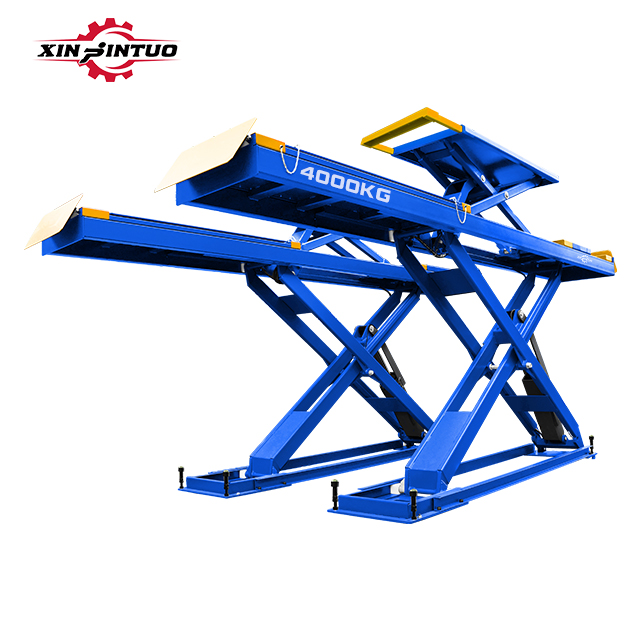

Jintuo In Ground Hydraulic Wheel Alignment Auto Car Scissor Lift for Repair

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JSLX-4000AU

  • Jintuo Auto Tech

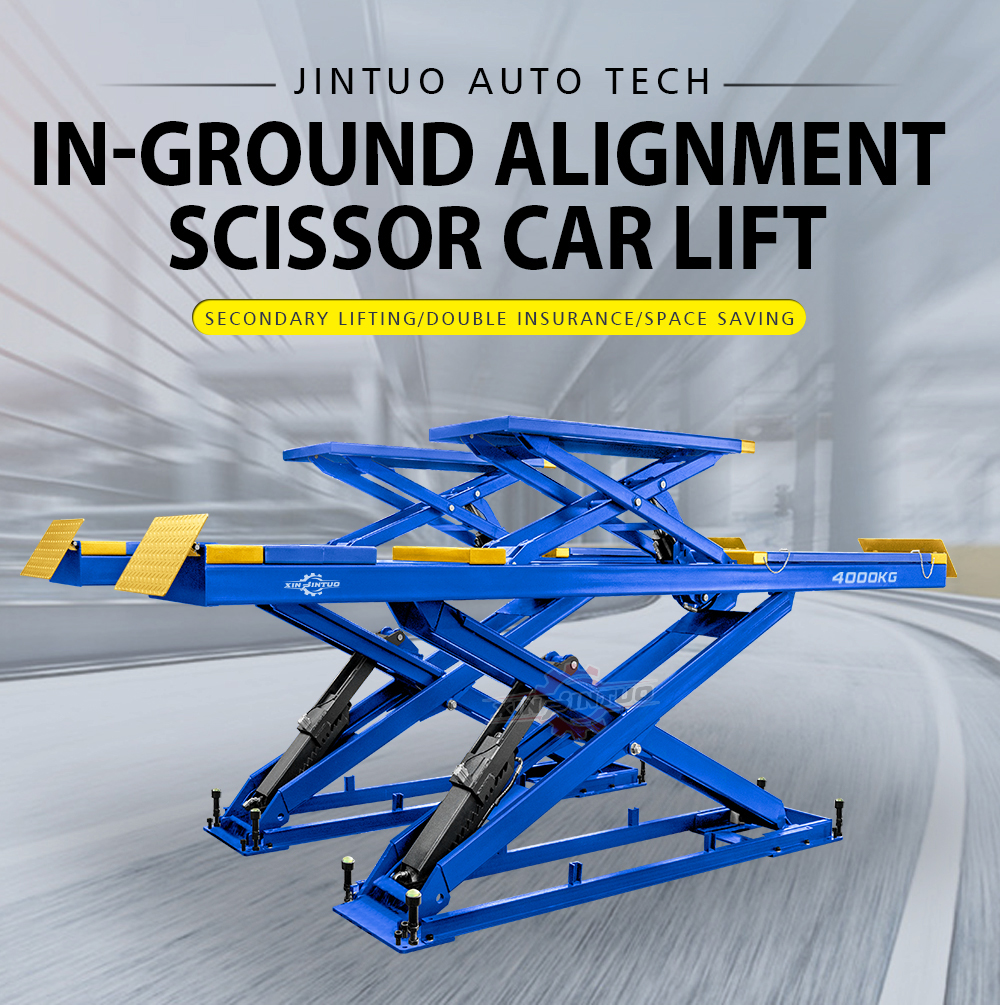

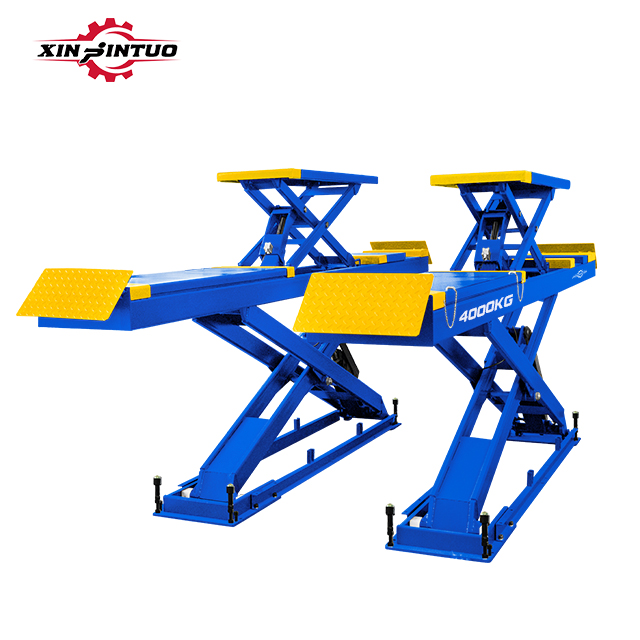

in-ground alignment scissor car lift

product main advantages

Product parameters:

Lifting Capacity 4000KGS
Shear Bearing Capacity 3000KGS
Length of Platform 4500MM
Width of Platform 600MM
Lighting Height 1700MM(Including Pit Depth)
Min. Height 350MM
Secondary Jack 450MM
Lifting Time 50-60S
Motor Power 2.2KW
Voltage 110/220/380V
Gross Weight 1950KGS

Product Description:

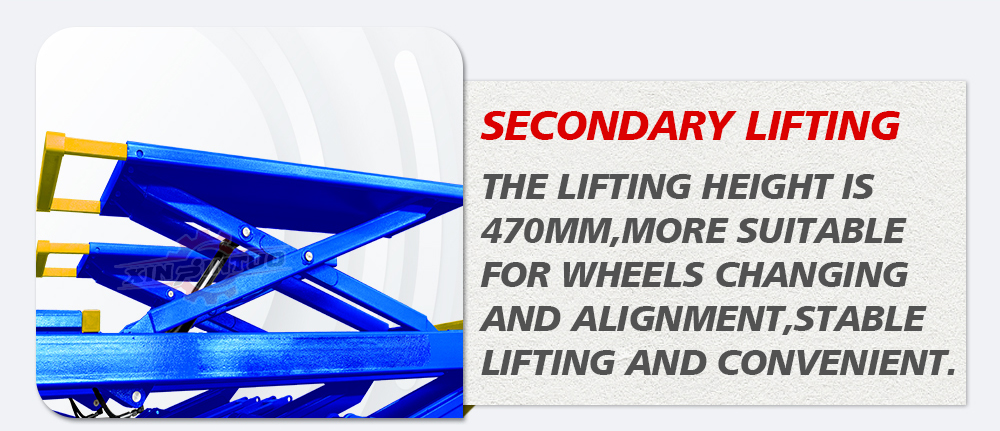

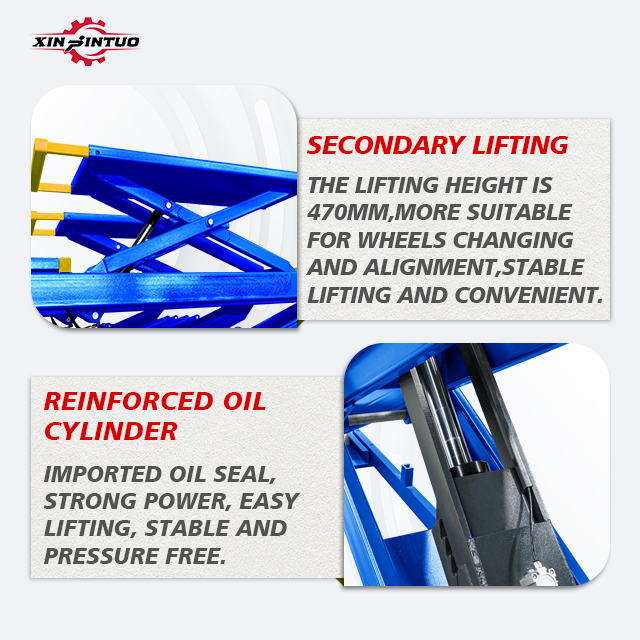

1. Secondary Lifting. The lift is equipped with secondary lifting trolley, moving flexibly, controlled by an independent control box.

2. In-ground mounted, occupying small space, providing the largest working space for diagnostic services.

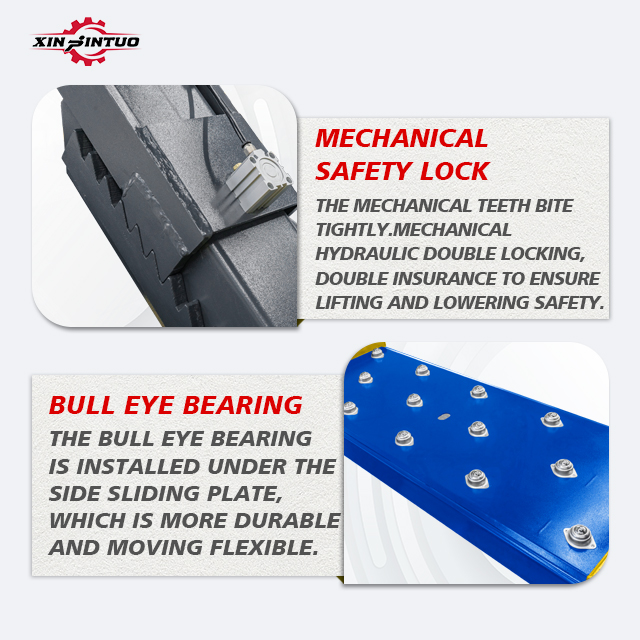

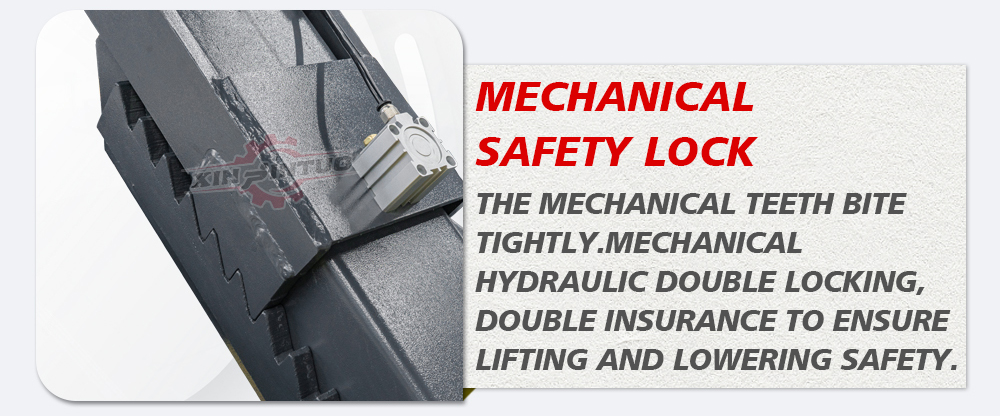

3. Mechanical hydraulic double locking.The mechanical lock is closed automatically when it goes up and pneumatically opened when it goes down, safe and reliable.

4. The X frame is laser cut from high-quality solid steel, with high strength, corrosion resistance and deformation resistance.

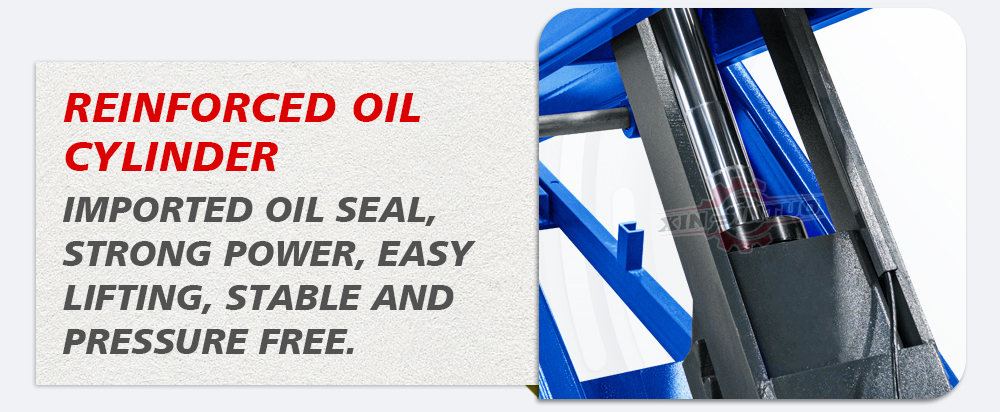

5. Reinforced oil cylinder. Imported oil seal, strong power, easy lifting, stable and pressure free.

6. Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts.

7. Electrical control uses 24V safety voltage, safer operation.

8. Passed ISO9001 and CE certification.

Please consult the product manager for more product functions and introductions!

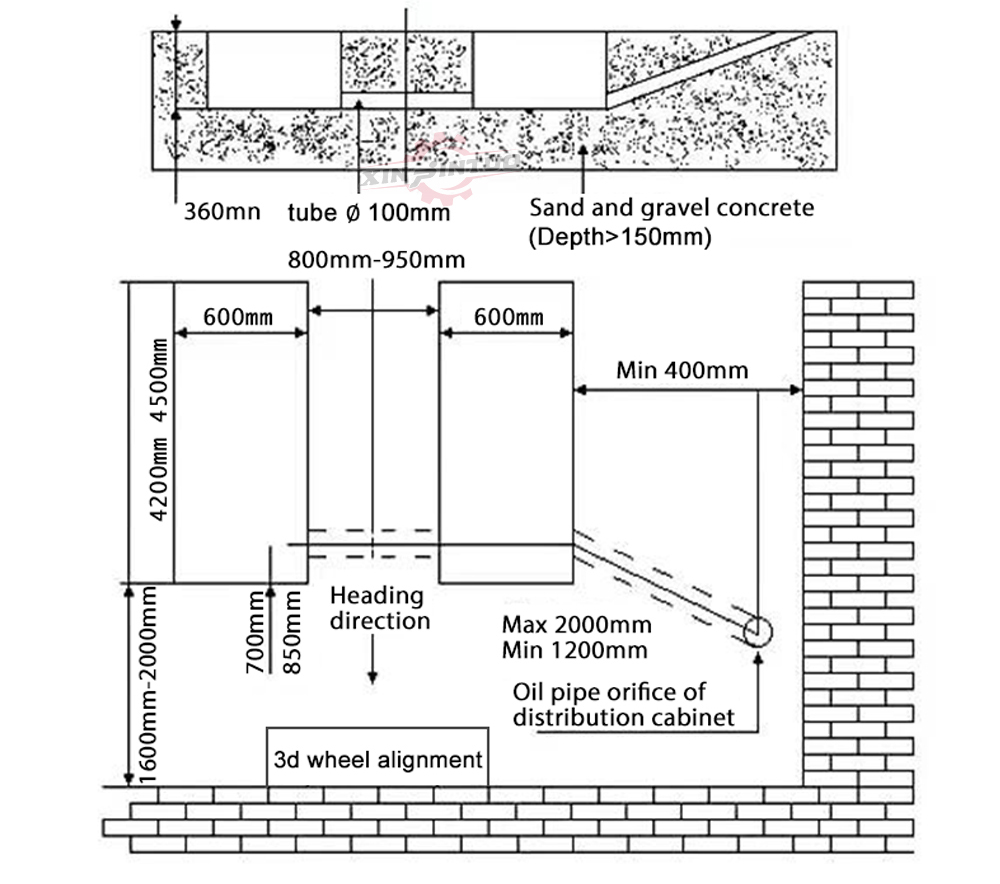

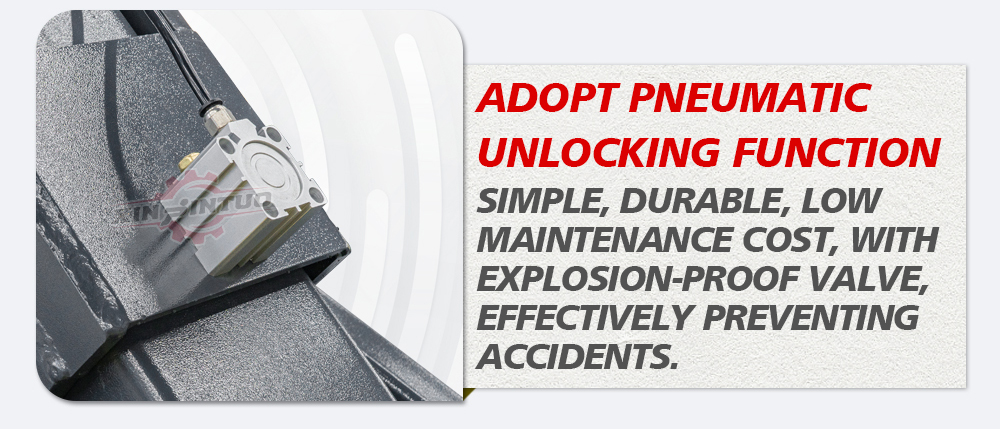

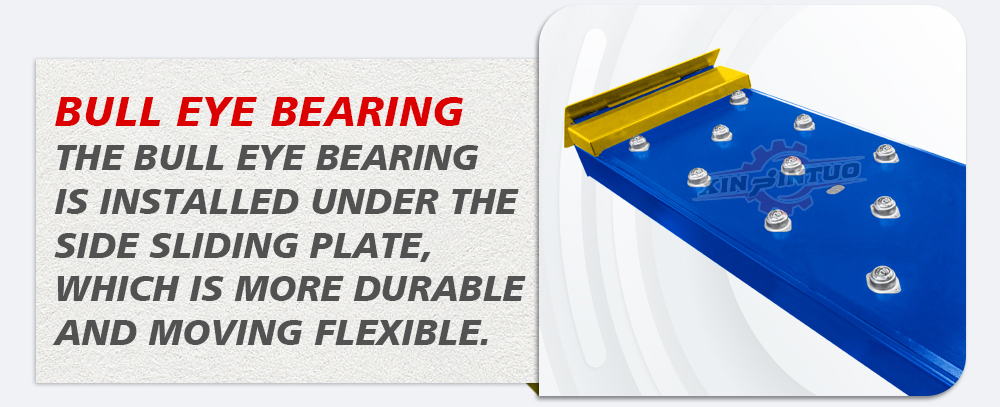

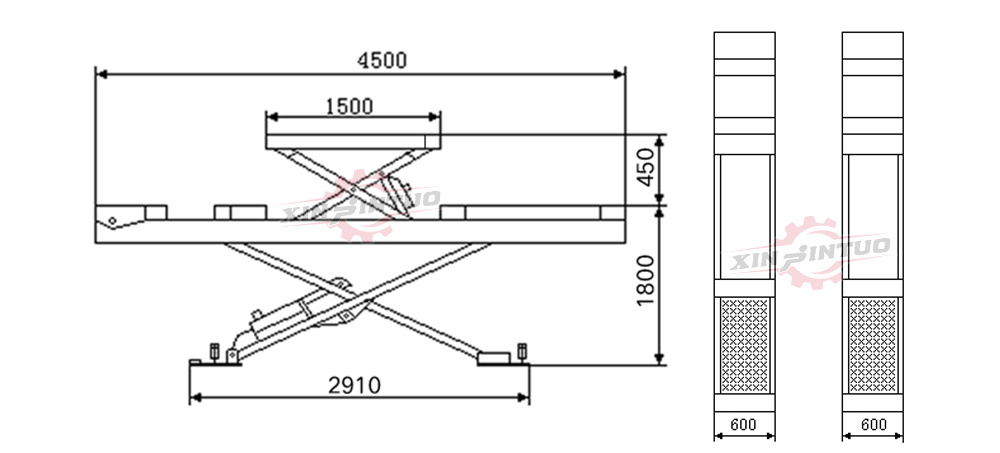

product descriptionSECONDARY LIFTINGreinforced oil cylindermechanical safety lockbull eye bearingadopt pneumatic unlocking functionproduct drawingsproduct drawings

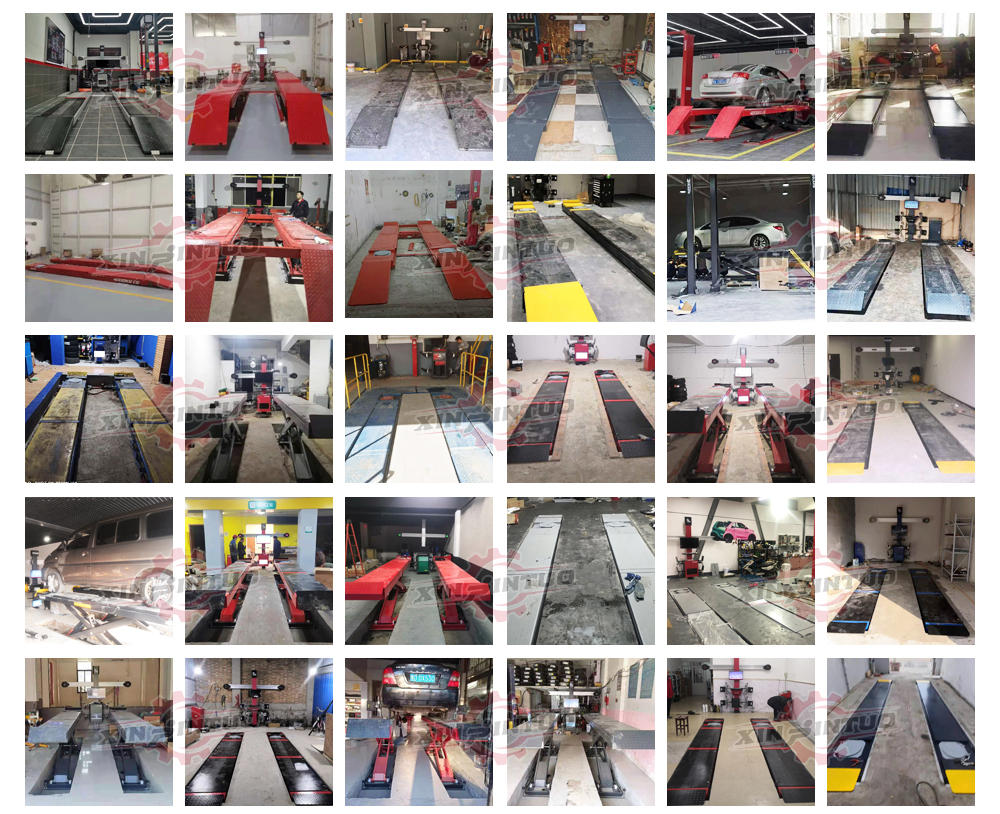

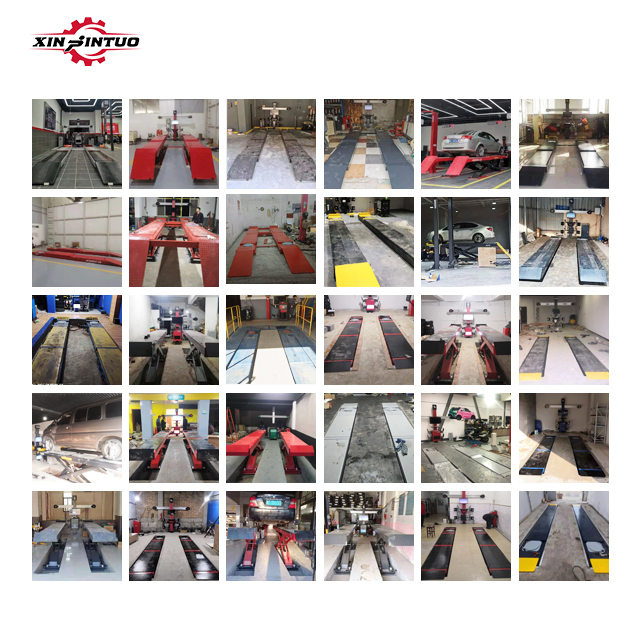

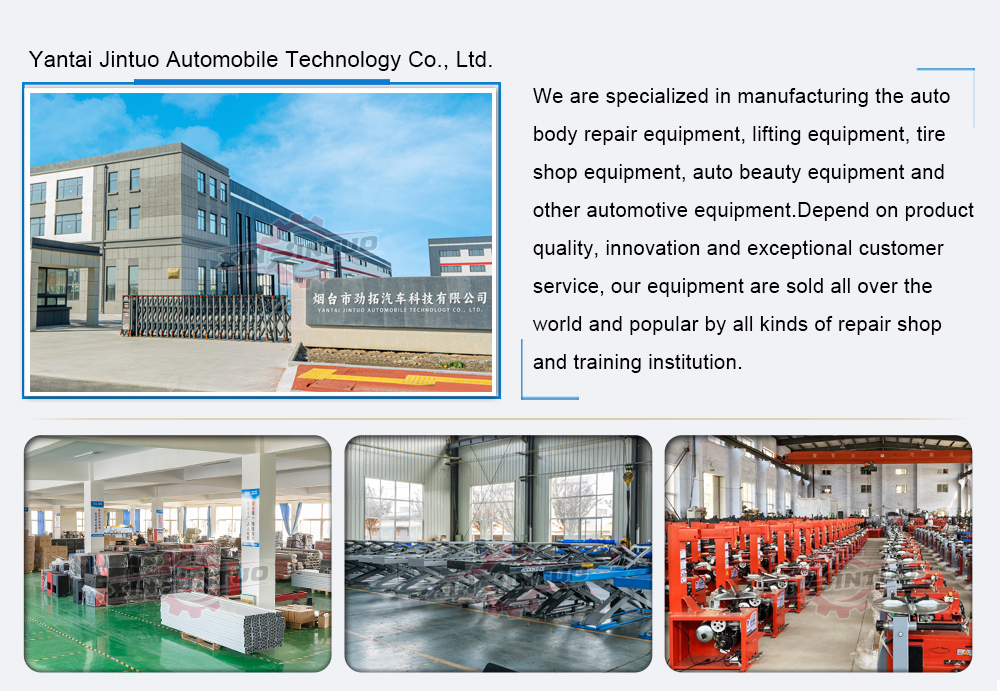

product drawingsequipment packagingequipment packagingcustomer showcustomer showcompany profilecompany profileour team

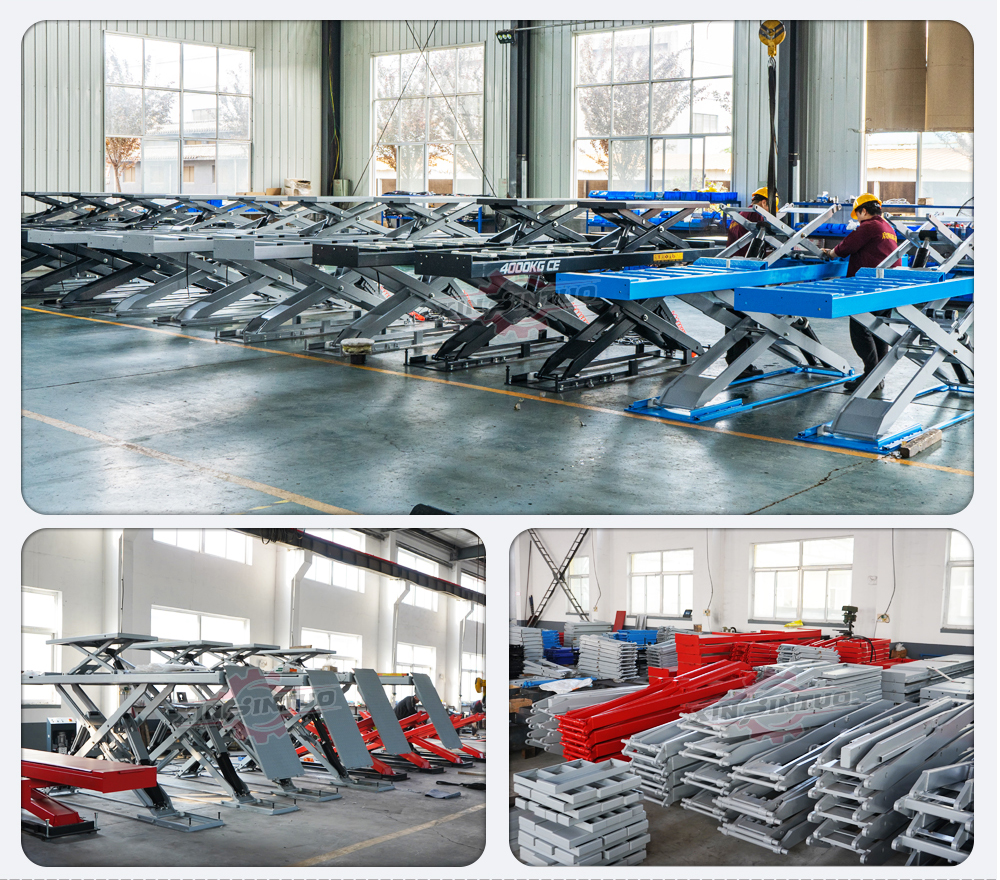

our teamexhibitionexhibitionour factoryour factoryour factory
