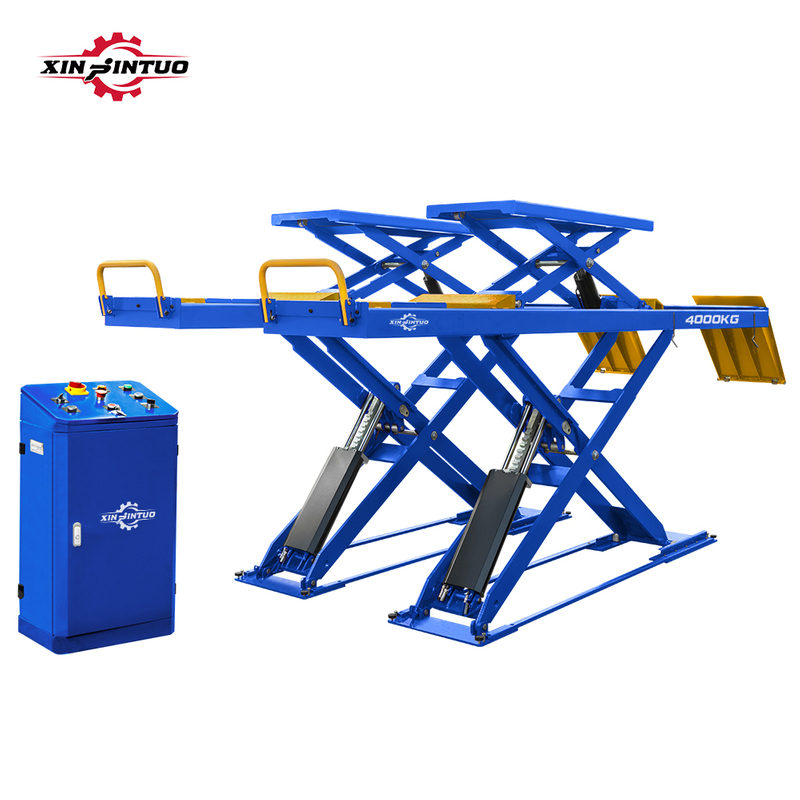

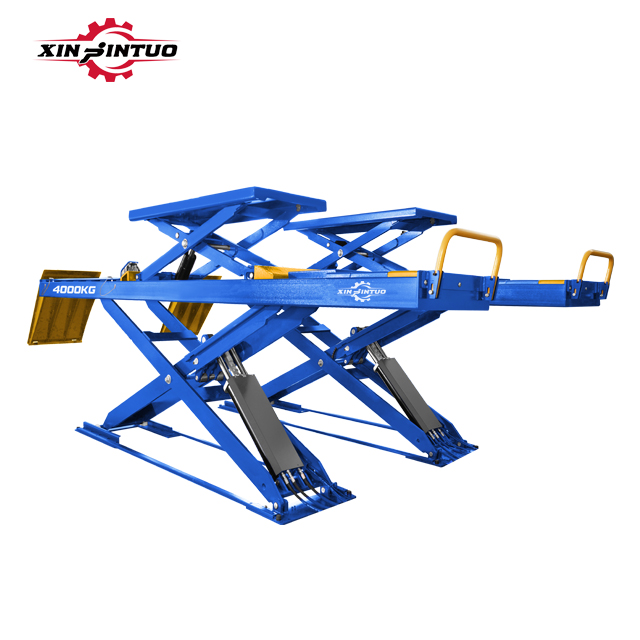

Jintuo 4000 Kg Capacity Four Cylinders Full Rise Ultra Thin Wheel Alignment Scissor Car Lift with CE

Lifting Height:
Lifting capacity:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JSLU-4000

  • Jintuo Auto Tech

ULTRA THIN SCISSOR CAR LIFTULTRA THIN SCISSOR CAR LIFT MAIN ADVANTAGES

Product parameters:

Lifting Capacity
4000kgs
Lifting Height Of Main Engine 1850mm
Lifting Height of  Sub Machine 450mm
Length of Main Platform 4500mm
Width Of Main Platform 630 mm
Width of Sub Platform 630mm
Lifting Time 50s
Floor Height 185mm
Air Supply Pressure 0.6-0.8Mpa
Net/Gross Weight 2030kgs/2060kgs
Packing Size(2 packages) 4500*610*550mm & 540*400*1040mm

Product Description:

1. Super low platforms and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.

2. Double tandem synchronous balanced cylinders and four cylinders driving ensures synchronous lifting of platforms,the 4.0T lifting capacity can match various vehicles repair requirement.

3. The lift is equipped with secondary lifting trolley, moving flexibly,controlled by manual button and remote.

4. Extended side slide adapts to vehicles of various wheelbases. The lift can be used for small vehicles including Pickup,SUV and business vehicles.

5. The use of mechanical safe lock, explosion-proof valves and self-lock of hydraulic systems ensure a safe work.

6. Imported oil seals prolongs the life of the cylinder. The combination valve block structure can level the machine.

7. Double deck steel oil pipe achieves good explosion-proof performance.

8. The surface adopts the shot blasting, degrease, parkerising, static powder coating, so it is of anti-erosion, good adhesion and high hardness.

Please consult the product manager for more product functions and introductions!

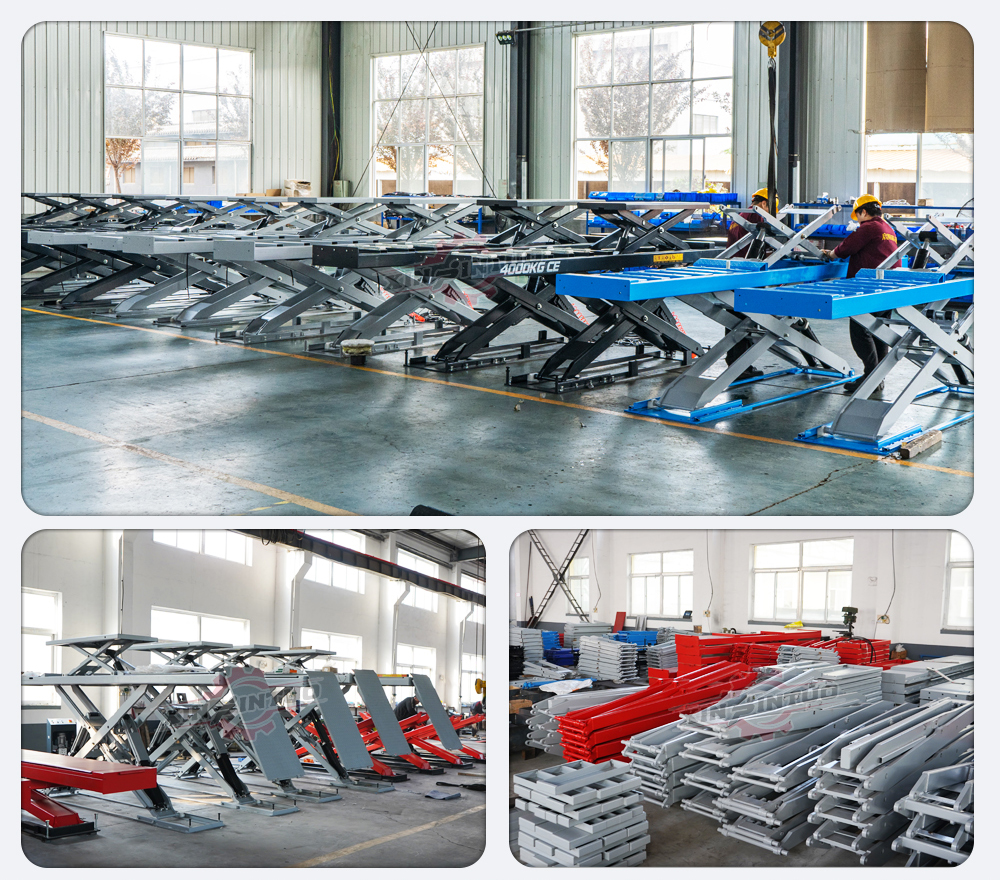

thickened solid support armintegral solid lock teeththickened oil cylinderremovable baseoil filling holePRODUCT DRAWINGEQUIPMENT PACKAGINGCUSTOMER SHOWCOMPANY PROFILEOUR TEAMEXHIBITIONOUR FACTORYour factory
