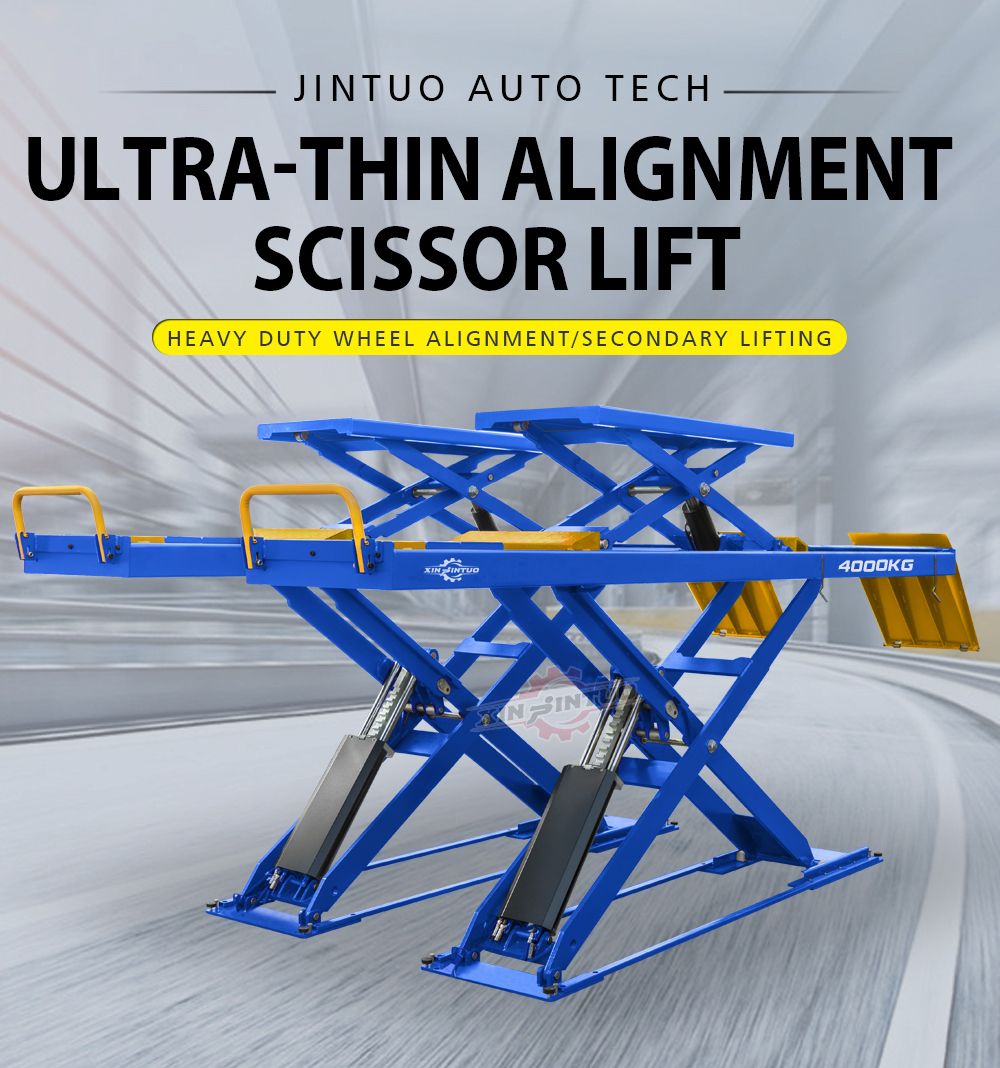

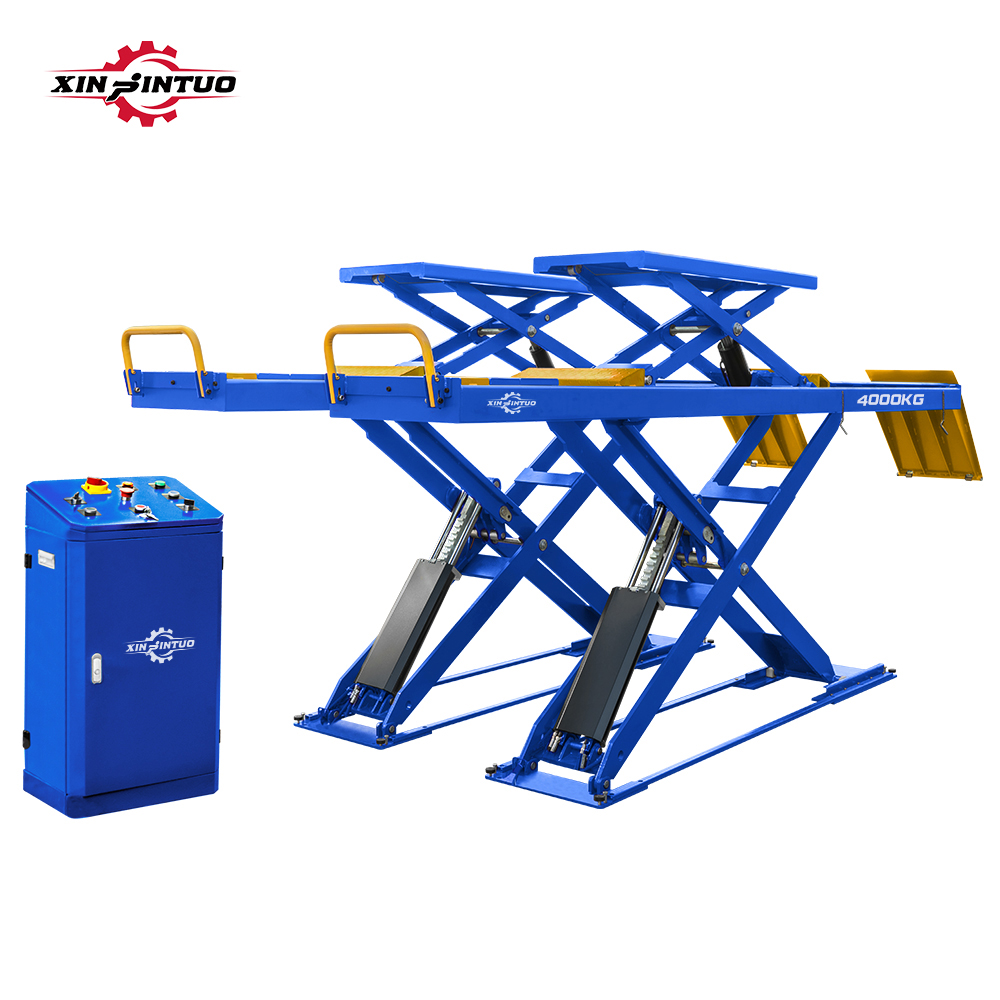

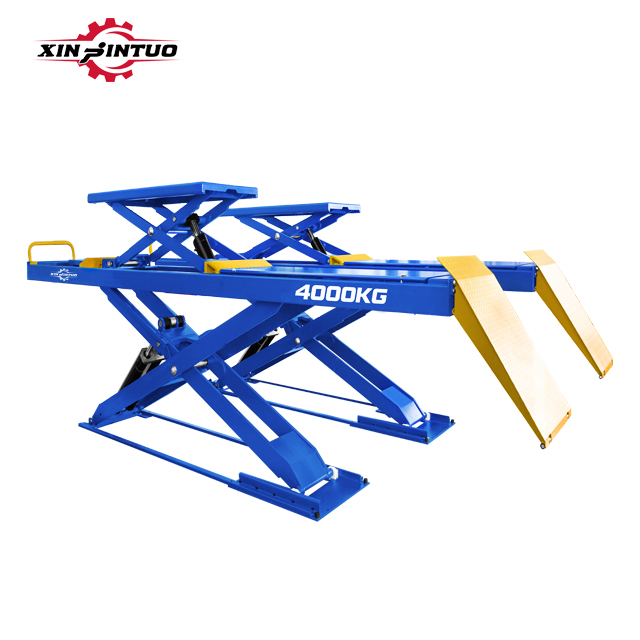

JSLU-4000
Jintuo Auto Tech
Product parameters：
| Lifting Capacity | 4000kgs |
| Lifting Height Of Main Engine | 1850mm |
| Lifting Height of Sub Machine | 450mm |
| Length of Main Platform | 4500mm |
| Width Of Main Platform | 630 mm |
| Width of Sub Platform | 630mm |
| Lifting Time | 50s |
| Floor Height | 185mm |
| Air Supply Pressure | 0.6-0.8Mpa |
| Net/Gross Weight | 2030kgs/2060kgs |
| Packing Size(2 packages) | 4500*610*550mm & 540*400*1040mm |
Product Description:
1. Super low platforms and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.

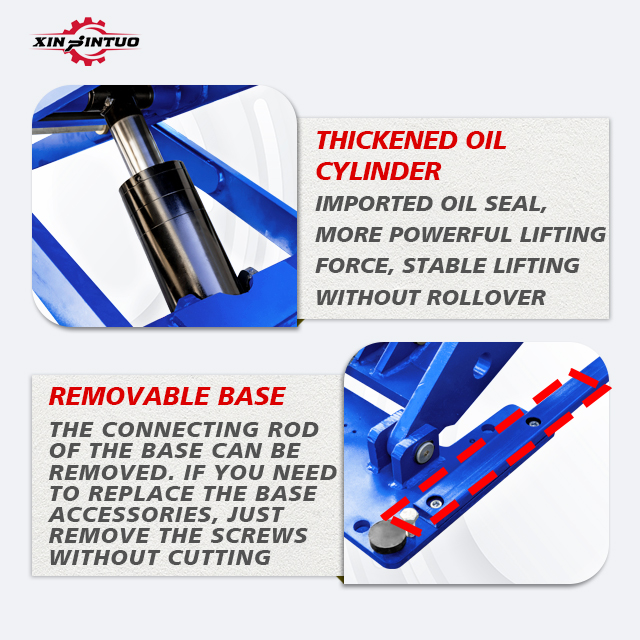

2. Double tandem synchronous balanced cylinders and four cylinders driving ensures synchronous lifting of platforms,the 4.0T lifting capacity can match various vehicles repair requirement.
3. The lift is equipped with secondary lifting trolley, moving flexibly,controlled by manual button and remote.

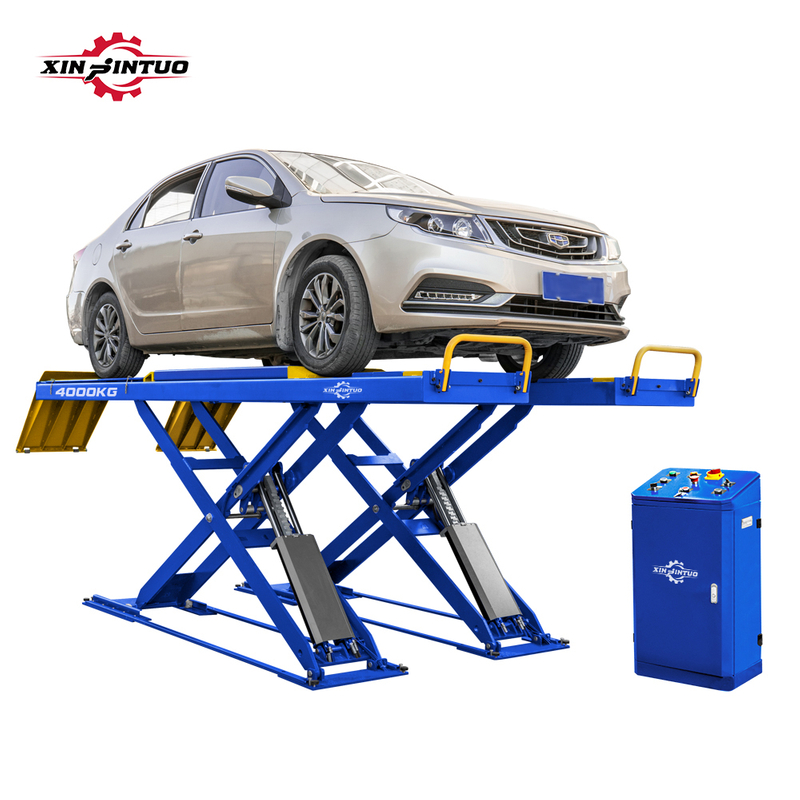

4. Extended side slide adapts to vehicles of various wheelbases. The lift can be used for small vehicles including Pickup,SUV and business vehicles.

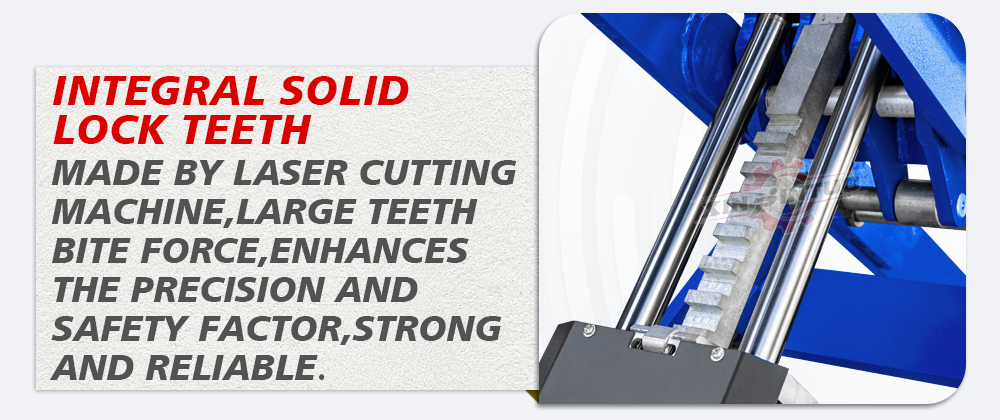

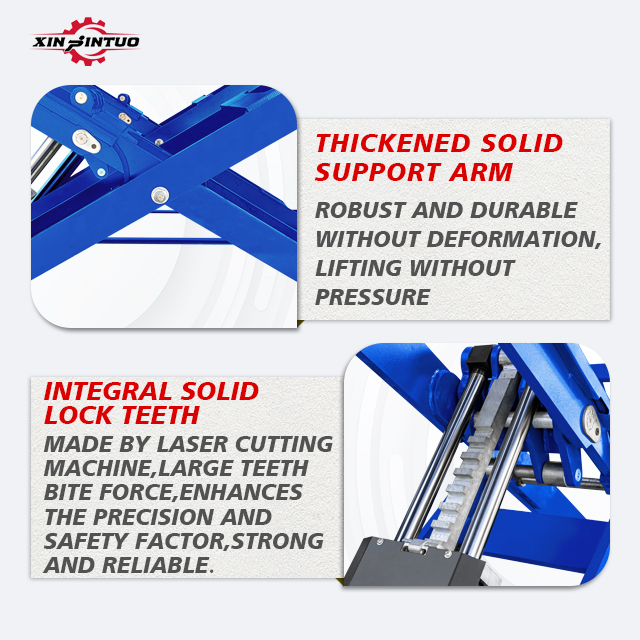

5. The use of mechanical safe lock, explosion-proof valves and self-lock of hydraulic systems ensure a safe work.

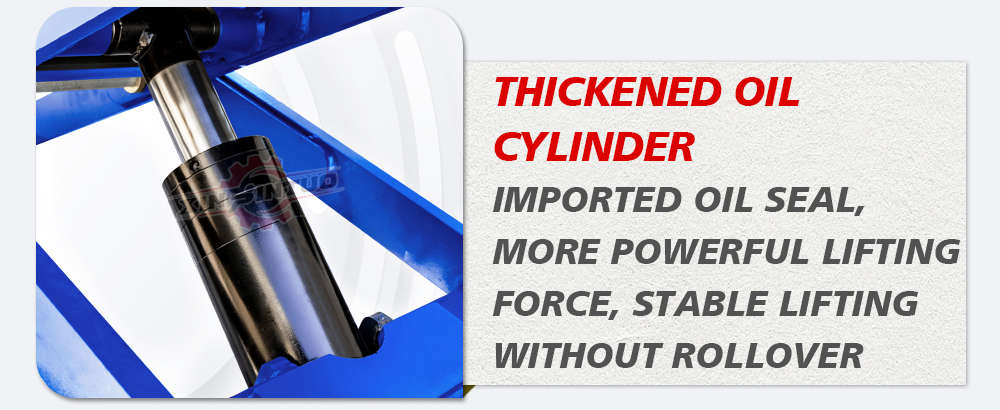

6. Imported oil seals prolongs the life of the cylinder. The combination valve block structure can level the machine.
7. Double deck steel oil pipe achieves good explosion-proof performance.
8. The surface adopts the shot blasting, degrease, parkerising, static powder coating, so it is of anti-erosion, good adhesion and high hardness.
Please consult the product manager for more product functions and introductions!
