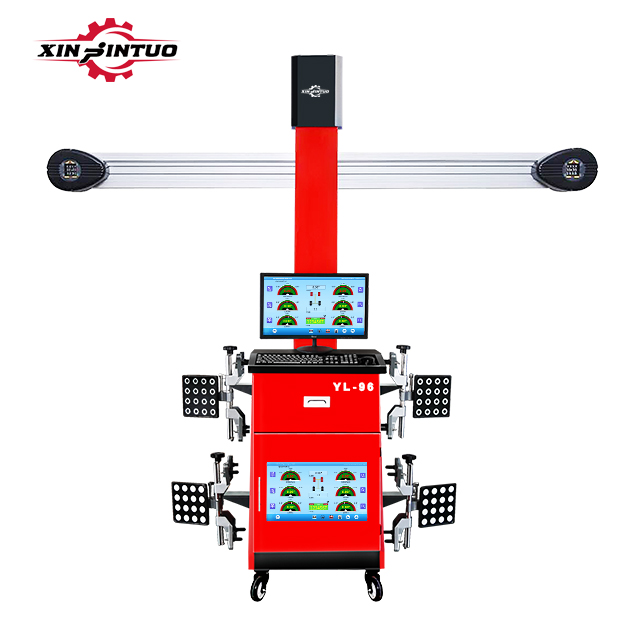

YL-96
Jintuo Auto Tech
Product parameters：
| MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
| TOTAL TOE-IN | ±0.01° | ±40° |
| EXTERNAL BEVEL | ±0.01° | ±45° |
| CASTER | ±0.02° | ±45° |
| S.A.I | ±0.02° | ±45° |
| THRUST ANGLE | ±0.01° | ±40° |
| SET BACK | ±0.01° | ±40° |
| MAX. STEERING ANGLE | ±0.02° | ±50° |
| WHEEL TRACK | ±2MM | 1219MM-2438MM |
| WHEEL BASE | ±2MM | 2006MM-4572MM |
Product Description:

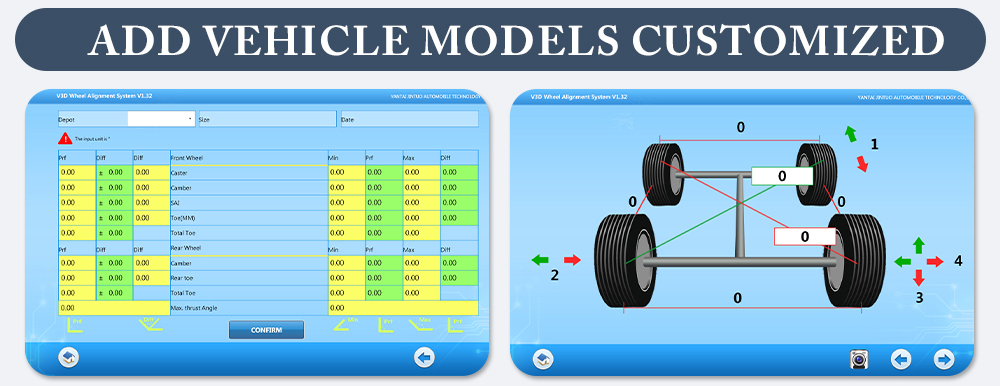

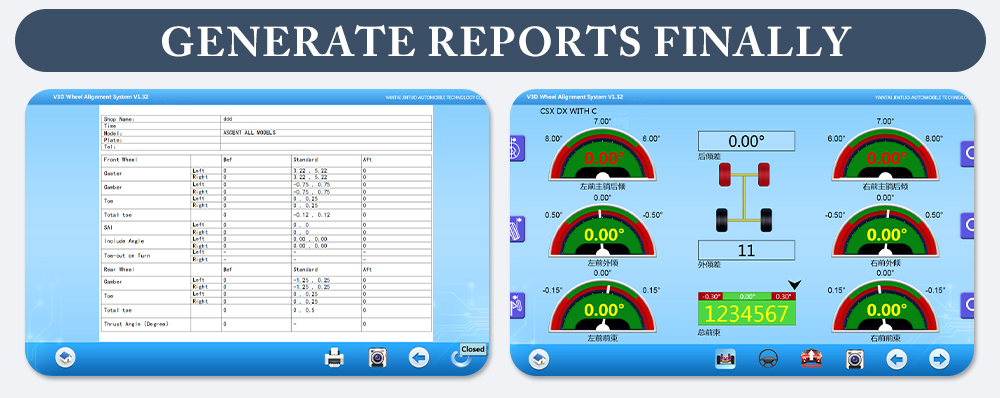

1. Quick searching the four wheel alignment data, and upgrade database by free permanently.

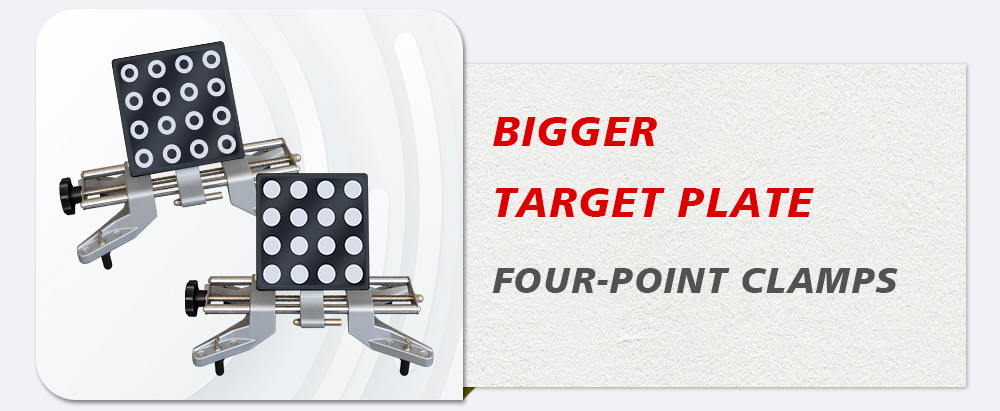

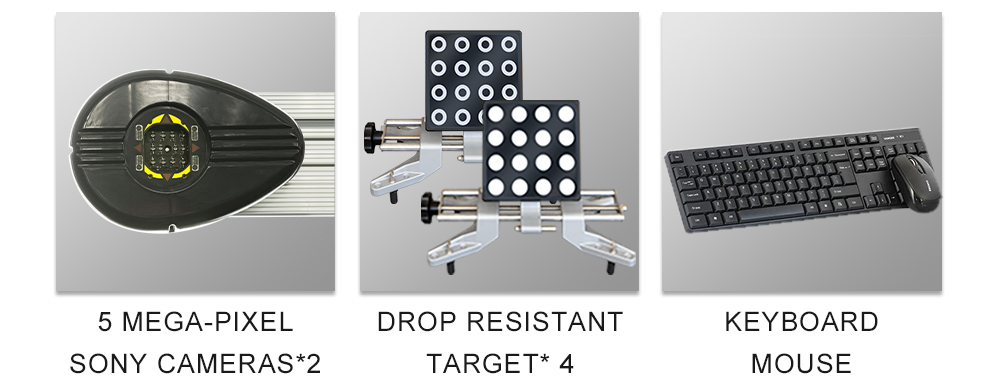

2. The four target boards only have detector imagin, w/o electronic parts and connection, reduce fault greatly
3. No need calibration before use, because the machines were calibrated very well before delivery.

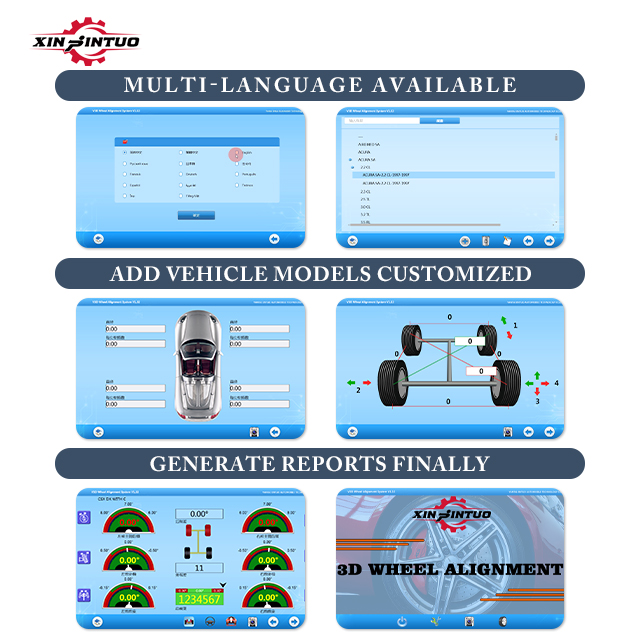

4. Global vehicle’s database Original vehicle database: Owning more than 20,000 original vehicle database from different region of the world.

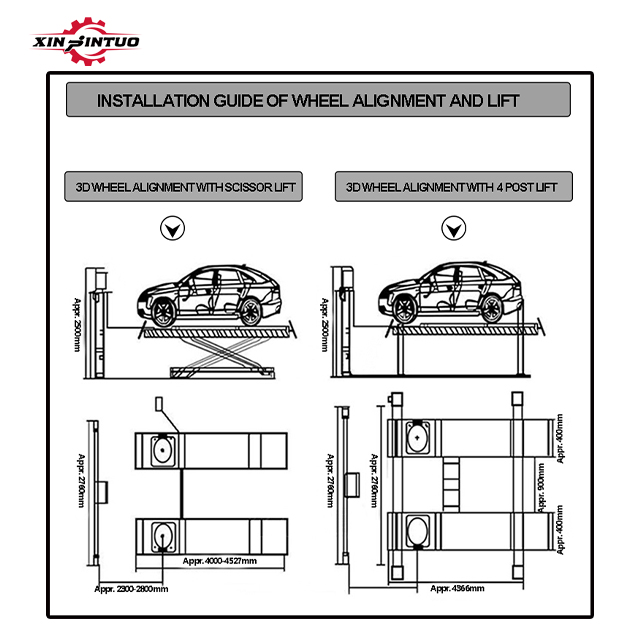

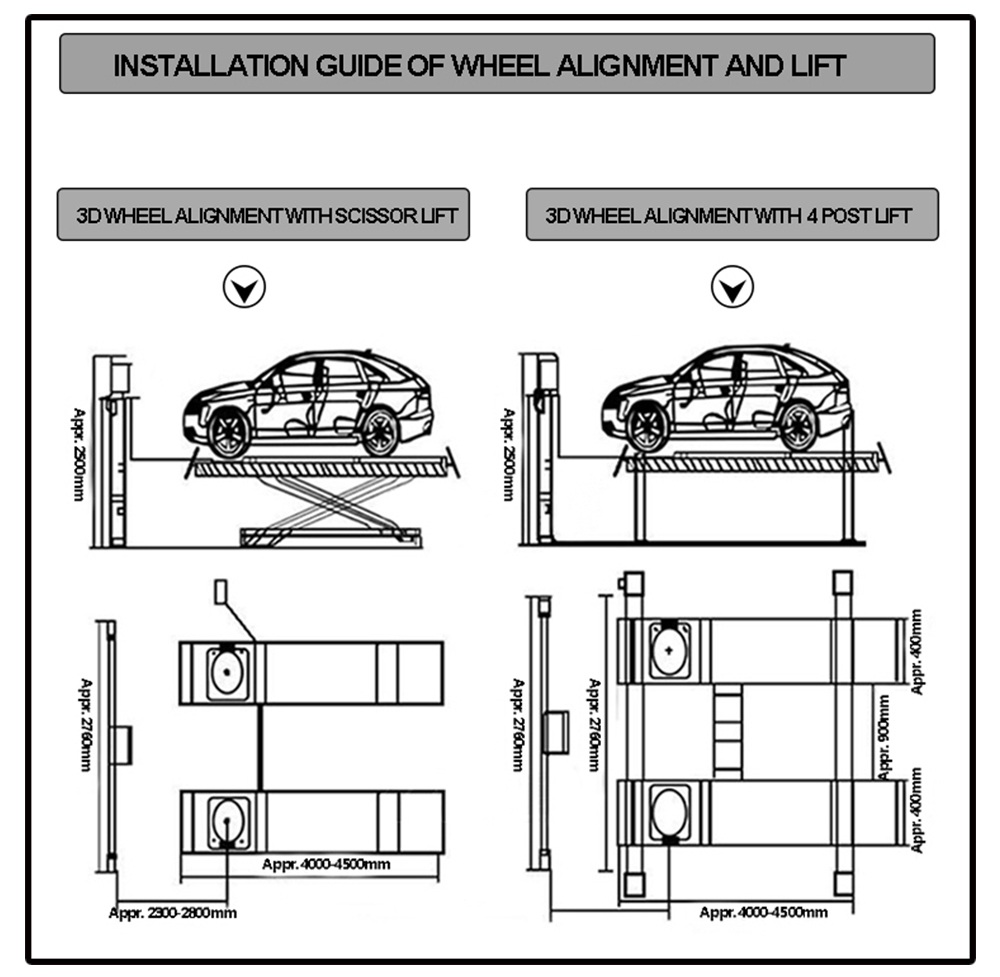

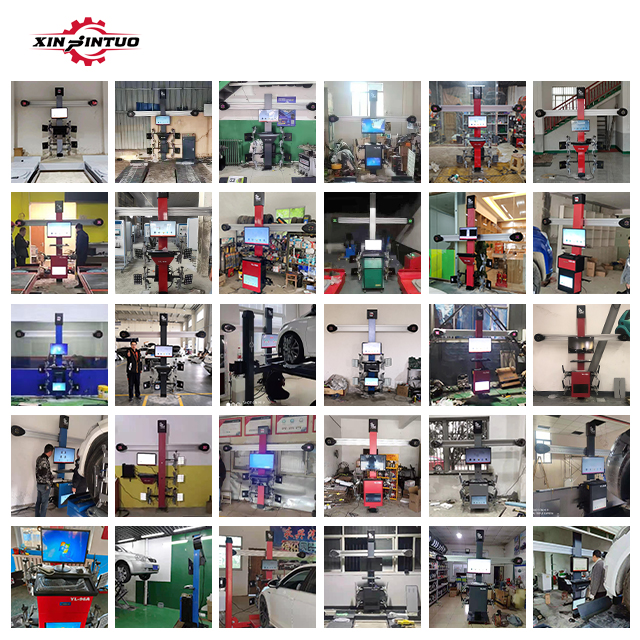

5. Ultra short installation distance: the installation site requirements are low, and the distance from the camera to the front wheel can be as short as 1.6 meters.
6. Full body size measurement system, supporting data measurement such as wheelbase, wheelbase difference, wheelbase, wheelbase difference, etc.
7. The targets are both waterproof and drop resistant, as well as not having to be calibrated regularly, which is much easier to use and maintain.There is no need to worry about problems of cable pulling, battery replacement, or signal failure charging.
Please consult the product manager for more product functions and introductions!
